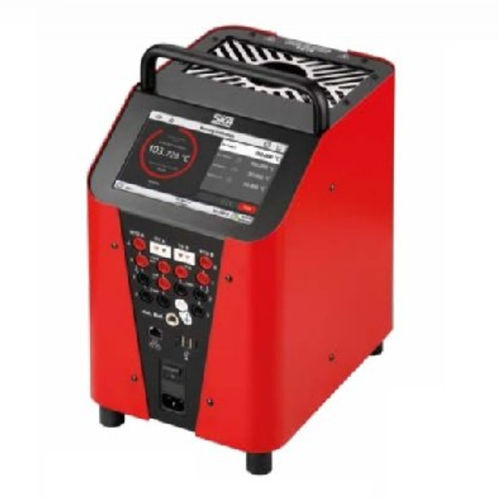

High-temperature dry block heater TP 37165E.2

coolingwith touchscreen

Description
Portable dry-block temperature calibrator designed for the calibration of measuring instruments and probes. Provides optimized thermal coupling between the block and the device under test through tailored inserts. Operates across the full temperature range without changing the calibration medium.

Application areas

• Installation and commissioning
• Manufacturing and production
• Maintenance and after-sales service
• Quality assurance and test equipment monitoring
• Repair

Main features and functions

• Dry-block operation
• Optimized thermal coupling of the block to the device under test using tailored inserts (recommended drill diameter: external diameter of the device + 0.5 mm)
• Patented control technology enabling time savings of up to 50%
• Hybrid heating/cooling technology (Peltier elements and heating cartridges) for faster cooling and heating times
• One of the fastest stabilization times on the market
• Touch screen display (patented function)
• Two-channel measurement instrument for simultaneous readings
• Fast instrument control management with barcode scanner (optional)

Technical characteristics / specifications

• Temperature range: -35 … 165 °C
• Accuracy: ±0.2 °C
• Stability: ±0.01 °C and ±0.005 °C depending on models
• Standard insert: Ø 28 mm
• Insert depth: 150 mm
• Type: portable dry-block calibrator
• Heating/cooling technology: hybrid (Peltier + heating cartridges)
• Display: touch screen
• Measurement channels: 2 channels
• Optional accessory: barcode scanner for fast management and control
