Temperature calibrator UC RTD.2for RTD sensorsportablerugged
Add to favorites
Compare this product
Characteristics
- Physical quantity
- temperature
- Applications
- for RTD sensors
- Options
- portable, precision, laboratory, compact, industrial, rugged, splash-resistant
Description
Overview

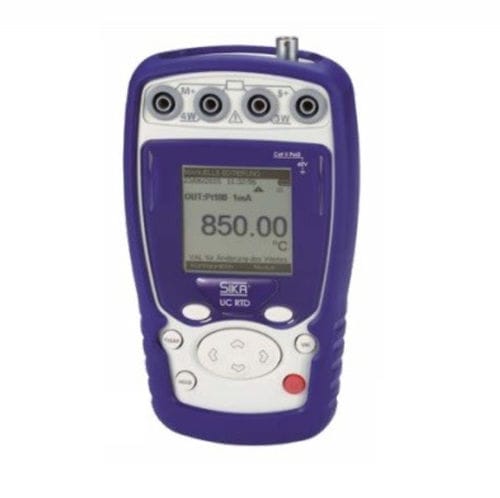

Portable single-function temperature calibrator SIKA UC RTD.2 for resistance thermometers (RTD). Compact, lightweight instrument designed for on-site mobile calibration. Robust plastic housing resistant to shocks, rubber keys, dust- and splash-resistant design, and 4 mm shrouded sockets for fast and secure connections.
Main functions
Supported RTD types
Measurement and generation parameters
Construction & ergonomics
Applications
Options
Technical specifications
Portable single-function temperature calibrator SIKA UC RTD.2 for resistance thermometers (RTD). Compact, lightweight instrument designed for on-site mobile calibration. Robust plastic housing resistant to shocks, rubber keys, dust- and splash-resistant design, and 4 mm shrouded sockets for fast and secure connections.
Main functions
- Generation and measurement of RTD signals.
- Integrated generator and measurement functions.
- User-friendly interface suited for field work.
Supported RTD types
- Pt50
- Pt100
- Pt200
- Pt500
- Pt1000
- Cu10
- Cu50
- Ni100
- Ni120
- Ni1000
Measurement and generation parameters
- Generator: 0…3500 Ω
- Measurement: 0…3600 Ω
- Accuracy (reading + constant): ±0.012 %
- Temperature unit selectable: °C / °F
- Supported number of wires: 2 / 3 / 4
Construction & ergonomics
- Robust plastic housing resistant to shocks and vibrations.
- Rubber keys for easy use on site.
- Dust- and splash-resistant for field applications.
- 4 mm shrouded sockets for fast and secure connections.
Applications
- Service, maintenance and repair of measurement instruments and sensors
- Quality assurance
- Test and research laboratories / Metrology
- Measurement and control technology
- Process industry
- Power generation
- Machine and equipment manufacturing
Options
- Optional delivery with calibration certificate (possibility of COFRAC-accredited calibration, COFRAC equivalent or COFRAC-traceable calibration on request).
Technical specifications
- Model: UC RTD.2
- RTD types: Pt50, Pt100, Pt200, Pt500, Pt1000, Cu10, Cu50, Ni100, Ni120, Ni1000
- Generator: 0…3500 Ω
- Measurement: 0…3600 Ω
- Accuracy (reading + constant): ±0.012 %
- Temperature units: °C and °F (selectable)
- Number of wires: 2 / 3 / 4
- Connectors: 4 mm shrouded sockets
- Housing: robust plastic, shock and vibration resistant
- Keys: rubber, dust- and splash-resistant
- Use: on-site mobile calibration
- Option: calibration certificate (COFRAC accreditation or equivalent possible)
