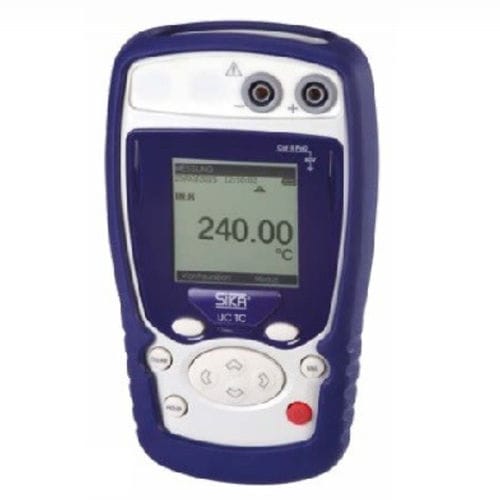

Temperature calibrator UC TC.2

voltagefor thermocouplescompact

Description
Single-function thermocouple calibrator. SIKA single-function process calibrators provide high performance, durability and reliable operation. These temperature calibrators (TC: thermocouples) are compact, lightweight and easy to transport for on-site calibration. They feature rubber keys for simple operation and offer resistance to dust and water splashes. The robust plastic housing resists shocks and impacts and adds protection against vibration in demanding environments. 4 mm shielded sockets enable fast and reliable connection to devices under test.

Functions and uses

• Accurate simulation and measurement of thermocouple signals.
• Designed for mobile on-site and laboratory calibration.
• Simple operation thanks to rubber keys and ergonomic housing.

Supported thermocouples

• J, K, T, R, S, B, N, E, U, L, C

Measurement specifications

• mV generator function: -9.5 … 80 mV
• mV measurement function: -10 … 100 mV
• Accuracy (reading + constant): ±0.02%
• Selectable temperature unit: °C / °F
• Internal reference / comparison: ±0.3°C

Options

• Available with calibration certificate (certificate can be COFRAC-accredited or equivalent).

Main applications

• Service, maintenance and repair
• Quality assurance
• Test and research laboratories
• Measurement and control technology
• Process industry
• Power generation
• Machine and equipment manufacturing

Features / technical specifications

• Product type: Single-function thermocouple calibrator
• Signals: thermocouples (types listed above)
• mV generator: -9.5 … 80 mV
• mV measurement: -10 … 100 mV
• Accuracy: ±0.02% (reading + constant)
• Internal reference / comparison: ±0.3°C
• Temperature unit: selectable °C / °F
• Connection: 4 mm shielded sockets
• Mechanical features: robust plastic housing resistant to shocks, rubber keys, dust and splash resistant
