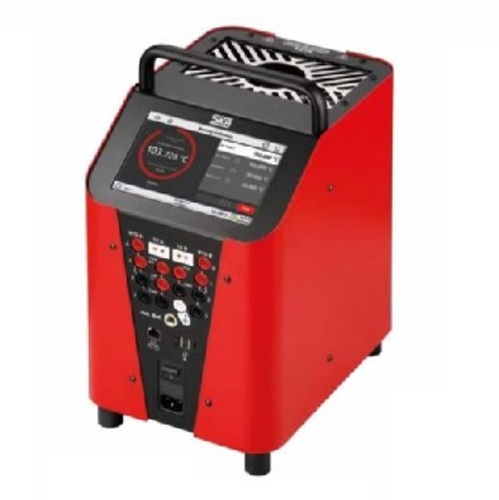

High-temperature dry block heater TP 37200E.2

coolingwith dual temperaturewith touchscreen

Description
Portable dry-well temperature calibrator offering optimized stabilization times and enhanced control performance for industrial calibration tasks.

Technical summary

• Temperature range: -55…200°C
• Accuracy: ±0.2°C
• Stability: ±0.01°C and ±0.005°C depending on model
• Insert diameter: Ø 28 mm
• Insert depth: 150 mm

Application areas

• Commissioning and start-up
• Manufacturing and production
• Maintenance and after-sales service
• Quality assurance and test equipment monitoring
• Repair

Features and benefits

• Dry-well function: optimized thermal coupling between the block and the device under test (recommended drill diameter 0.5 mm larger than the external diameter of the device under test)
• Hybrid technology (Peltier elements and heating cartridges) for fast cooling and heating
• One of the fastest dry-well calibrators on the market
• Widest temperature range on the market with cooling and heating: -55…200°C
• Very fast stabilization times
• Patented touch screen
• High-precision two-channel measurement instrument
• Fast asset management via barcode scanner (optional)

Specifications

• Model: TP 37200E.2
• Type: Portable dry-well temperature calibrator
• Temperature range: -55…200°C
• Accuracy: ±0.2°C
• Stability: ±0.01°C and ±0.005°C depending on model
• Standard insert diameter: Ø 28 mm
• Insert depth: 150 mm
• Technology: hybrid (Peltier + heating cartridges)
• Touch screen (patented)
• Functions: fast heating and cooling, dual measurement channel
• Accessories/options: barcode scanner (optional)
