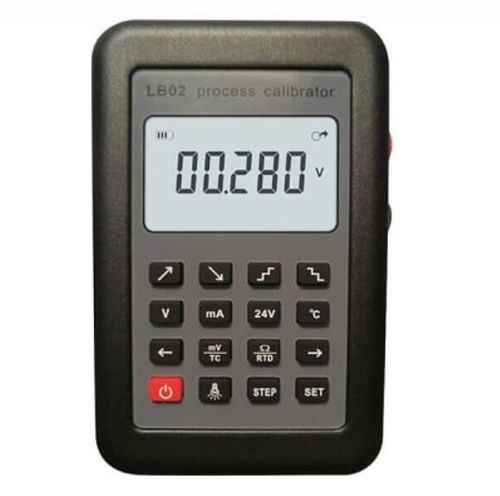

Voltage calibrator LB02

temperaturefor mA signalsmultifunction

Overview
The LB02 is a compact, intuitive handheld generator/voltmeter designed for control engineers and laboratory technicians to calibrate and measure process signals. It combines generator, simulator and multimeter functions to generate and measure voltages, currents and temperature signals.

Functions and uses

• Pocket signal generator for process use and voltmeter
• Measurement and generation: voltages (V, mV), current (mA), RTD outputs (PT100) and thermocouples (TC)
• Can be used as temperature calibrator, RTD (PT100) simulator and loop calibrator
• Dedicated keys for common functions (V, mV, mA, 24 V, TC, RTD, ...)
• Designed for field and laboratory use with features required in automation and field instrumentation
• LCD display with backlight for easy reading

Technical specifications

• Accuracy: 0.025%
• Outputs / measurements: RTD resistance (PT100), thermocouple, mA, mV
• Use: precision process calibrator and multimeter (temperature calibrator, RTD PT100 simulator, loop calibrator, etc.)
• Copper connector for low contact resistance
• Innovative circuit improving output and measurement accuracy
• Compact housing with dedicated function buttons
• ABS housing with flame retardant
• Display: backlit LCD
• Dimensions: 120 x 76 x 30 mm
• Power: high-capacity rechargeable battery 2200 mAh
• Designed for valve calibration and automation applications
• Simple and intuitive operation
