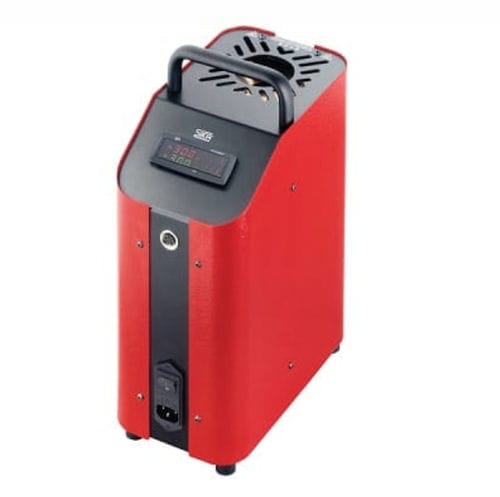

Agitating dry block heater TP 17-SOLID

high-temperaturecompactdigital

Overview
Portable dry-well temperature calibrator TP17-SOLID. The TP Solid series focuses on flexibility. Operation is simple and intuitive, providing fast access to all functions. Micro-baths (e.g. TPM165S, TPM255S) are also available to complete the range. A speed-controlled magnetic stirrer ensures good temperature homogeneity.

Main functions
Reversible functions combined with an external reference sensor allow testing of various temperature monitoring devices regardless of shape, size or measurement method. A switch enables selection between the internal and external reference probe. All instruments in this series are equipped with a PC serial port.

Dry-well function description
Optimal thermal coupling of the block to the element under test is achieved using a suitable insert. Ideally, the drilled hole diameter should be 0.5 mm larger than the external diameter of the element under test. The dry-well covers its full temperature range without changing the calibration medium, avoiding constraints related to the viscosity of calibration media.

Model features

• TP 17200S: Temperature range -55…200°C. Insert: Ø 28 mm. Depth: 150 mm.
• TP 17165S: Temperature range -35…165°C. Insert: Ø 28 mm. Depth: 150 mm.
• TP 17166S: Temperature range -35…165°C. Insert: Ø 60 mm. Depth: 150 mm.
• TP 17450S: Temperature range Ambient…450°C. Insert: Ø 60 mm. Depth: 150 mm.
• TP 17650S: Temperature range Ambient…650°C. Insert: Ø 28 mm. Depth: 150 mm.

Summary of specifications

• Type: Portable dry-well temperature calibrator
• Temperature range: -55…650°C depending on model
• Accuracy: ±0.2°C to ±0.4°C depending on model
• Stability: ±0.05°C
• Available inserts: Ø 28 mm and Ø 60 mm depending on model
• Insert depth: 150 mm
• Reference probe: Internal reference probe supplied (external probe can be used)
• Interface: PC serial port
• Homogeneity: Speed-controlled magnetic stirrer
• Operation: Internal/external reference switch, reversible functions for varied tests

Technical specifications

• Product type: Portable dry-well temperature calibrator (TP Solid series)
• Available models: TP 17200S, TP 17165S, TP 17166S, TP 17450S, TP 17650S
• Temperature ranges (by model): -55…200°C, -35…165°C, Ambient…450°C, Ambient…650°C
• Accuracy: ±0.2°C to ±0.4°C depending on model
• Thermal stability: ±0.05°C
• Insert diameters: Ø 28 mm and Ø 60 mm
• Insert depth: 150 mm
• Reference probe: Internal (external reference probe possible)
• Connectivity: PC serial port
• Additional elements: Magnetic stirrer for homogeneity, internal/external reference switch
