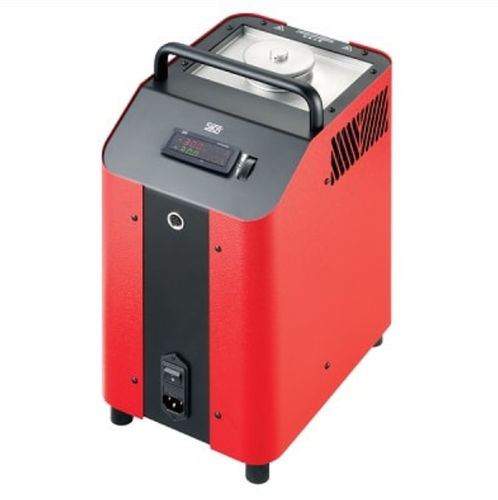

Low-temperature calibration bath TP M165S

for temperature sensorshigh-precisionportable

Overview
Portable micro calibration bath for verification of temperature probes and transmitters. Designed for on-site checks, workshop use, test/measurement rooms and laboratories. Offers strong stability and a wide operating range suitable for multiple industries.

Possible application areas

• Installation and commissioning
• Manufacturing and production
• Maintenance and service
• Quality assurance and monitoring of test equipment
• Repair

Micro-bath operation
Using calibration liquids (e.g., silicone oil) enables direct immersion of test items with unusual shapes or sizes, ensuring direct thermal contact without air insulation. A magnetic stirrer and a removable sensor basket create a large measurement zone while limiting vortex formation and protecting the tank bottom. Stirring speed can be adjusted according to the required calibration temperature.

Reference probe and certificates
The micro-bath is equipped with an internal reference probe. A factory calibration certificate is available as an option. If required, an accredited calibration certificate (COFRAC or equivalent) can be provided.

Features / technical specifications

• Temperature range: -35…165°C
• Accuracy: ±0.1°C
• Stability: ±0.05°C
• Block dimensions: Ø 60 mm
• Block depth: 170 mm
• Portable unit for on-site calibration
