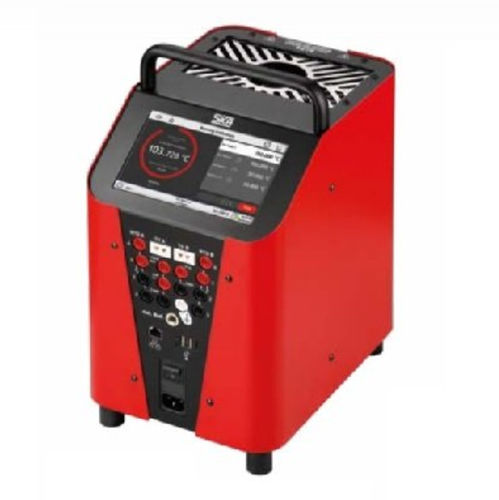

High-temperature dry block heater

with touchscreen

Description
Portable temperature calibration furnace designed for checking thermometers, temperature sensors and transmitters. This is a dry-well unit covering an operating range up to 700 °C, suitable for workshop, test room and laboratory use.

Application areas

• Installation and commissioning
• Manufacturing and production
• Maintenance and service
• Quality assurance and test equipment monitoring
• Repair

Dry-well function
Optimal thermal coupling between the block and the device under test is achieved using a suitable insert. Ideally the bore diameter is 0.5 mm larger than the external diameter of the device under test. The dry well covers its entire temperature range without changing the calibration medium, avoiding issues associated with liquid media (viscosity, etc.).

Features and benefits

• High temperature range (up to 700 °C) — top model in the TP Premium series
• Very fast stabilization times
• Metal alloy construction for long service life
• Touchscreen with patented function
• Integrated two-channel measuring instrument for improved accuracy
• Fast equipment handling with barcode scanner (accessory)
• Optional with integrated measuring instrument (option reference: TP 37700E.2i)

Technical characteristics / specifications

• Type: dry well
• Temperature range: Ambient … 700 °C
• Accuracy: ±0.43 °C (internal probe) / ±0.27 °C
• Temperature stability: ±0.100 °C (internal probe) / ±0.015 °C
• Calibration volume: Ø 29 x 150 mm
• Integrated measuring instrument (option available: TP 37700E.2i)
