Signal calibrator EC TC.2

temperaturefor thermocouplesprocess

Overview

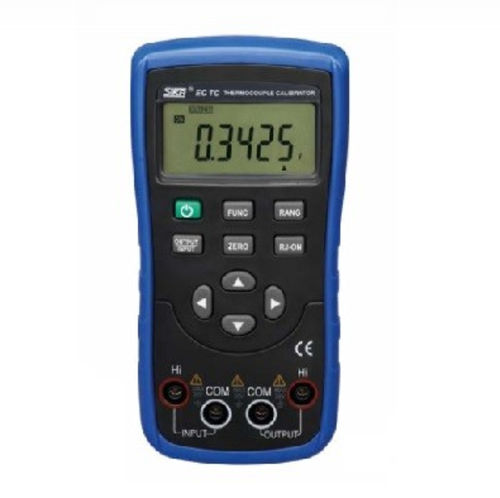

Single‑function thermocouple temperature calibrator SIKA EC TC.2. SIKA single‑function process calibrators provide performance, durability and reliability. Compact and lightweight for easy transport, equipped with rubber keys for simple operation and resistant to dust and water splashes. The robust plastic housing withstands shocks and vibrations in demanding environments. 4 mm shielded sockets ensure quick and simple connections.

Main functions

• mV generator function: -10…1100 mV
• mV measurement function: -10…100 mV
• Accuracy (reading + constant): ±0.05%
• Selectable temperature unit: °C / °F
• Internal reference junction: ±0.5°C
• Supported thermocouple types: J, K, T, R, S, B, N, E

Physical characteristics and ergonomics

• Compact, lightweight and portable for on‑site or laboratory calibration
• Rubber keys for simplified operation
• Resistant to dust and water splashes
• Robust plastic housing resistant to shocks and vibrations
• 4 mm shielded sockets for quick connection

Application areas

• Service, maintenance and repair of measurement instruments and sensors
• Quality assurance
• Test and research laboratories
• Metrology
• Measurement and control technology
• Process industry
• Power generation
• Machine and equipment manufacturing
• Other fields requiring thermocouple signal simulation and measurement

Options
Delivery with a calibration certificate is available (optional), which can be COFRAC accredited, COFRAC equivalent or COFRAC traceable.

Characteristics / technical specifications

• mV generator function: -10…1100 mV
• mV measurement function: -10…100 mV
• Accuracy: ±0.05% (reading + constant)
• Temperature unit: selectable °C / °F
• Internal reference junction: ±0.5°C
• Supported thermocouple types: J, K, T, R, S, B, N, E
• Connectors: 4 mm shielded sockets
• Housing: robust plastic, shock and vibration resistant
• Ergonomics: rubber keys, dust and splash resistant
• Use: portable on‑site or laboratory calibration
