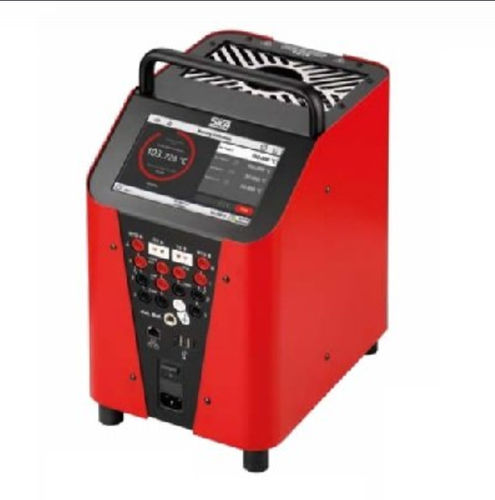

High-temperature dry block heater TP 37700E.2

with touchscreen

Description
Type: dry-well. Temperature range: ambient…700 °C. Accuracy: ±0.43 °C (internal probe) / ±0.27 °C. Temperature stability: ±0.100 °C (internal probe) / ±0.015 °C. Calibration volume: Ø29 x 150 mm. Optional integrated measuring instrument available.

Applications

• Assembly and commissioning
• Manufacturing and production
• Maintenance and service
• Quality assurance and test-equipment monitoring
• Repair

Dry-well function
The optimal thermal coupling between the block and the device under test is achieved using a suitable insert. Ideally, the drill diameter should be 0.5 mm larger than the external diameter of the device under test. The dry-well covers its full temperature range without the need to change the calibration medium, avoiding issues related to viscosity.

Features and highlights

• Highest temperature range in the TP Premium series
• Very fast stabilization time
• Durable metallic alloy for long service life
• Touchscreen (patented function)
• Two-channel measuring instrument option for improved accuracy
• Fast test-equipment handling (barcode scanner available as accessory)
• Option with integrated measuring instrument: TP 37700E.2i version

Specifications

• Type: dry-well
• Temperature range: ambient…700 °C
• Accuracy: ±0.43 °C (internal probe) / ±0.27 °C
• Stability: ±0.100 °C (internal probe) / ±0.015 °C
• Calibration volume: Ø29 x 150 mm
• Measuring instrument: optional integrated (TP 37700E.2i version)
• Display: touchscreen (patented function)
• Material: durable metallic alloy for long service life
