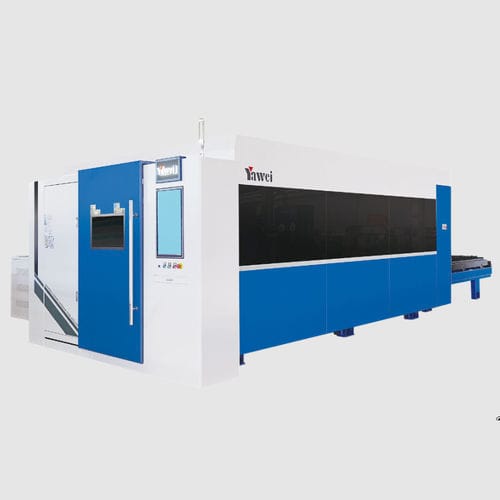

Laser cutting machine HLB seriesfor metalsheet metalwith control software
Add to favorites
Compare this product
Characteristics
- Technology
- laser
- Material
- for metal
- Product handled
- sheet metal
- Control type
- with control software
- Other characteristics
- high-speed, precision, fully-enclosed
- X travel
3,070 mm, 4,085 mm, 6,120 mm
(120.87 in, 160.83 in, 240.94 in)- Y travel
1,545 mm, 2,055 mm, 2,565 mm
(60.83 in, 80.91 in, 100.98 in)- Z travel
240 mm
(9 in)- Maximum cutting height
240 mm
(9.4 in)- Cutting speed
140 m/min
- Laser power
3,000 W, 6,000 W, 12,000 W
- Repeatability
0.02 mm, 0.03 mm
(0.0008 in, 0.0012 in)- Acceleration
Min.: 11.77 m/s²
(38.62 ft/s²)Max.: 14.71 m/s²
(48.26 ft/s²)- Overall length
8,700 mm, 11,000 mm, 15,500 mm
(343 in, 433 in, 610 in)- Maximum width
4,000 mm, 5,000 mm, 5,800 mm
(157 in, 197 in, 228 in)- Height
2,300 mm
(91 in)- Load capacity
900 kg, 1,500 kg, 3,000 kg
(1,984.2 lb, 3,306.9 lb, 6,613.9 lb)
Description
Overview
Designed for medium-to-thin sheet cutting, the HLB High-Speed Series provides high trajectory speed and precise positioning for industrial production. Machines combine bus control technology with a PC-compatible laser control system to ensure stable process control and operator-adjustable cutting parameters.
Models and main parameters
Technical specifications
Designed for medium-to-thin sheet cutting, the HLB High-Speed Series provides high trajectory speed and precise positioning for industrial production. Machines combine bus control technology with a PC-compatible laser control system to ensure stable process control and operator-adjustable cutting parameters.
Models and main parameters
- HLB-2560: Cutting range 6100×2545 mm; X stroke 6120 mm; Y stroke 2565 mm; Z stroke 240 mm; X-Y max trajectory speed 140 m/min; X/Y max acceleration 1.2 G m/s²; Positioning accuracy ±0.03 mm; Repositioning accuracy ±0.02 mm; Max worktable load 3000 kg; Machine dimensions 15500×5800×2300 mm; Laser power options 3/6/12 kW
- HLB-2040: Cutting range 4065×2035 mm; X stroke 4085 mm; Y stroke 2055 mm; Z stroke 240 mm; X-Y max trajectory speed 140 m/min; X/Y max acceleration 1.5 G m/s²; Positioning accuracy ±0.03 mm; Repositioning accuracy ±0.02 mm; Max worktable load 1500 kg; Machine dimensions 11000×5000×2300 mm; Laser power options 3/6/12 kW
- HLB-1530: Cutting range 3050×1525 mm; X stroke 3070 mm; Y stroke 1545 mm; Z stroke 240 mm; X-Y max trajectory speed 140 m/min; X/Y max acceleration 1.5 G m/s²; Positioning accuracy ±0.03 mm; Repositioning accuracy ±0.02 mm; Max worktable load 900 kg; Machine dimensions 8700×4000×2300 mm; Laser power options 3/6/12 kW
Technical specifications
- Series: HLB High-Speed Series
- Suitable for: medium-to-thin sheet cutting
- Control: High-end bus control technology; PC-compatible custom laser control system
- Operation: Human-centric operating interface; upgraded cutting parameter library
- Maintenance: Fully enclosed integrated design; maintenance-free optical path
- Positioning accuracy: ±0.03 mm
- Repositioning accuracy: ±0.02 mm
- X-Y max trajectory speed: 140 m/min
- Laser generator power options: 3 kW / 6 kW / 12 kW
