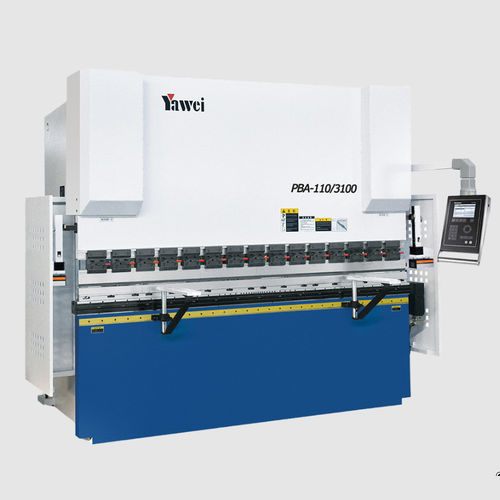

Electro-hydraulic press brake PBA series

CNChigh-speedhigh-power

Overview

• Sleek industrial design with a minimalist styling and ergonomic operation layout.
• Optimal parameter configuration and premium core components for stable performance and easy operation.
• Fully closed-loop electro-hydraulic servo synchronization control system (imported from Germany) for precise synchronization and improved energy efficiency.
• High-rigidity frame and CNC-controlled mechanical crowning on the worktable to ensure uniform bending accuracy.

Available models

• PBA-300/4100
• PBA-300/3100
• PBA-220/4100
• PBA-220/3100
• PBA-160/4100
• PBA-160/3100
• PBA-110/4100
• PBA-110/3100
• PBA-63/2550
• PBA-63/2050
• PBA-35/1250

Specifications per model
PBA-300/4100
Bending pressure: 3000 kN
Bending length A: 4100 mm
Distance between columns B: 3600 mm
Throat depth D: 410 mm
Slider stroke C: 265 mm
Mould height E: 580 mm
Slider speed: 120 mm/s (approach) 10 mm/s (working) 120 mm/s (return)
Main motor power: 22 kW
Oil tank volume: 600 L
Overall dimension L*W*H: 4670*1925*3080 mm
Machine weight: 15800 kg

PBA-300/3100
Bending pressure: 3000 kN
Bending length A: 3100 mm
Distance between columns B: 2600 mm
Throat depth D: 410 mm
Slider stroke C: 265 mm
Mould height E: 580 mm
Slider speed: 120 mm/s (approach) 10 mm/s (working) 120 mm/s (return)
Main motor power: 22 kW
Oil tank volume: 450 L
Overall dimension L*W*H: 3670*1925*2980 mm
Machine weight: 13800 kg

PBA-220/4100
Bending pressure: 2200 kN
Bending length A: 4100 mm
Distance between columns B: 3600 mm
Throat depth D: 410 mm
Slider stroke C: 215 mm
Mould height E: 550 mm
Slider speed: 160 mm/s (approach) 12 mm/s (working) 150 mm/s (return)
Main motor power: 17 kW
Oil tank volume: 400 L
Overall dimension L*W*H: 4650*1795*2950 mm
Machine weight: 12800 kg

PBA-220/3100
Bending pressure: 2200 kN
Bending length A: 3100 mm
Distance between columns B: 2600 mm
Throat depth D: 410 mm
Slider stroke C: 215 mm
Mould height E: 550 mm
Slider speed: 160 mm/s (approach) 12 mm/s (working) 150 mm/s (return)
Main motor power: 17 kW
Oil tank volume: 300 L
Overall dimension L*W*H: 3650*1795*2850 mm
Machine weight: 10800 kg

PBA-160/4100
Bending pressure: 1600 kN
Bending length A: 4100 mm
Distance between columns B: 3600 mm
Throat depth D: 410 mm
Slider stroke C: 215 mm
Mould height E: 550 mm
Slider speed: 200 mm/s (approach) 13 mm/s (working) 160 mm/s (return)
Main motor power: 11.3 kW
Oil tank volume: 400 L
Overall dimension L*W*H: 4630*1525*2950 mm
Machine weight: 10500 kg

PBA-160/3100
Bending pressure: 1600 kN
Bending length A: 3100 mm
Distance between columns B: 2600 mm
Throat depth D: 410 mm
Slider stroke C: 215 mm
Mould height E: 550 mm
Slider speed: 200 mm/s (approach) 13 mm/s (working) 160 mm/s (return)
Main motor power: 11.3 kW
Oil tank volume: 300 L
Overall dimension L*W*H: 3650*1795*2850 mm
Machine weight: 10800 kg

PBA-110/4100
Bending pressure: 1100 kN
Bending length A: 4100 mm
Distance between columns B: 3600 mm
Throat depth D: 410 mm
Slider stroke C: 215 mm
Mould height E: 550 mm
Slider speed: 160 mm/s (approach) 12 mm/s (working) 150 mm/s (return)
Main motor power: 8.7 kW
Oil tank volume: 300 L
Overall dimension L*W*H: 4650*1795*2950 mm
Machine weight: 12800 kg

PBA-110/3100
Bending pressure: 1100 kN
Bending length A: 3100 mm
Distance between columns B: 2600 mm
Throat depth D: 410 mm
Slider stroke C: 215 mm
Mould height E: 550 mm
Slider speed: 160 mm/s (approach) 12 mm/s (working) 150 mm/s (return)
Main motor power: 8.7 kW
Oil tank volume: 300 L
Overall dimension L*W*H: 3650*1795*2850 mm
Machine weight: 10800 kg

PBA-63/2550
Bending pressure: 630 kN
Bending length A: 2550 mm
Distance between columns B: 2150 mm
Throat depth D: 350 mm
Slider stroke C: 175 mm
Mould height E: 480 mm
Slider speed: 180 mm/s (approach) 12.5 mm/s (working) 140 mm/s (return)
Main motor power: 5.5 kW
Oil tank volume: 200 L
Overall dimension L*W*H: 3120*1450*2390 mm
Machine weight: 5000 kg

PBA-63/2050
Bending pressure: 630 kN
Bending length A: 2050 mm
Distance between columns B: 1750 mm
Throat depth D: 350 mm
Slider stroke C: 175 mm
Mould height E: 480 mm
Slider speed: 180 mm/s (approach) 12.5 mm/s (working) 140 mm/s (return)
Main motor power: 5.5 kW
Oil tank volume: 150 L
Overall dimension L*W*H: 2720*1450*2390 mm
Machine weight: 4000 kg

PBA-35/1250
Bending pressure: 350 kN
Bending length A: 1250 mm
Distance between columns B: 950 mm
Throat depth D: 300 mm
Slider stroke C: 120 mm
Mould height E: 450 mm
Slider speed: 180 mm/s (approach) 16 mm/s (working) 180 mm/s (return)
Main motor power: 4.4 kW
Oil tank volume: 100 L
Overall dimension L*W*H: 1930*1400*2200 mm
Machine weight: 3000 kg

Key features

• Control system: fully closed-loop electro-hydraulic servo synchronization control (imported from Germany).
• Machine frame: high-rigidity frame designed for stable precision processing.
• Crowning: CNC-controlled mechanical crowning on the worktable for uniform bend results along the beam.
• Drive & power: main motor power varies by model (4.4 kW to 22 kW) and bending pressures cover 350 kN to 3000 kN.
• Hydraulic capacity: oil tank volumes vary by model (100 L to 600 L).
• Multi-stage slider speeds for rapid approach, working and return to optimize cycle time.

Typical applications

• Sheet metal fabrication and metalworking shops
• Household appliance and electrical enclosures production
• Metal façade and curtain wall panel bending
• Engineering and construction machinery components
