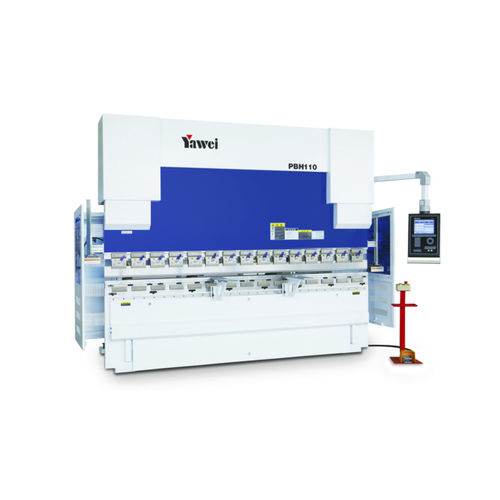

Electric press brake PBH seriesCNChigh-speedprecision
Add to favorites
Compare this product
Characteristics
- Operation
- electric
- Control
- CNC
- Other characteristics
- precision, high-speed
- Press force
Max.: 3,000 kN
Min.: 800 kN
- Folding length
Max.: 4,100 mm
(161.4 in)Min.: 2,550 mm
(100.4 in)- Engine power
Max.: 22 kW
(29.91 hp)Min.: 8.5 kW
(11.56 hp)- Machine length
Max.: 4,700 mm
(185 in)Min.: 3,140 mm
(124 in)- Machine width
Max.: 1,900 mm
(74.8 in)Min.: 1,540 mm
(60.63 in)- Machine height
Max.: 3,100 mm
(122.05 in)Min.: 2,450 mm
(96.46 in)- Daylight
Max.: 580 mm
(23 in)Min.: 480 mm
(19 in)- Maximale stroke
Max.: 265 mm
(10 in)Min.: 175 mm
(7 in)
Description
Product Name
PBH High Speed CNC Press Brake
Key Features
Available Models
Product Parameter - PBH-300/4100
Bending force: 3000kN
Bending length A: 4100mm
Distance between uprights B: 3600mm
Throat depth D: 410mm
Ram stroke C: 265mm
Die setting height E: 580mm
Ram speed: 110mm/s 10mm/s 110mm/s
Main motor power: 22kW
Oil tank volume: 600L
Overall dimension L*W*H: 4700*1900*3100mm
CNC & Tooling
Notes
Multiple variant configurations (models listed above) are provided with specific parameter tables for each model. Separate detailed parameter tables are available per model.
PBH High Speed CNC Press Brake
Key Features
- High-speed CNC press brake for precision sheet metal bending
- Standard CNC control (DA56S); optional DA66T for machines with more than (4+1) axes
- X and R axis numerical backgauge with linear guide movement
- Mechanical quick clamp for upper die and 2‑V quick-change system for lower die
- Front supports adjustable by step pitch
Available Models
- PBH-300/4100
- PBH-300/3100
- PBH-250/4100
- PBH-250/3100
- PBH-220/4100
- PBH-220/3100
- PBH-160/4100
- PBH-110/4100

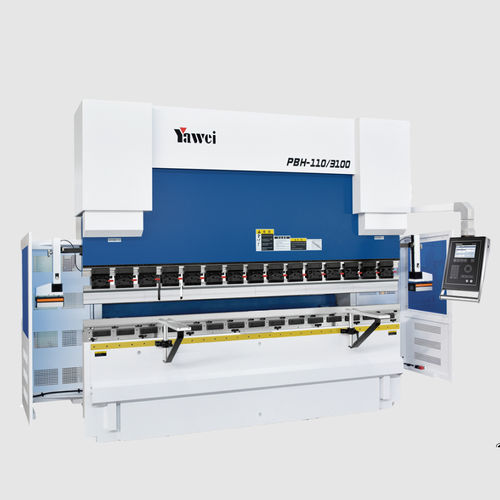

- PBH-110/3100
- PBH-80/2550
- PBH-160/3100
Product Parameter - PBH-300/4100
Bending force: 3000kN
Bending length A: 4100mm
Distance between uprights B: 3600mm
Throat depth D: 410mm
Ram stroke C: 265mm
Die setting height E: 580mm
Ram speed: 110mm/s 10mm/s 110mm/s
Main motor power: 22kW
Oil tank volume: 600L
Overall dimension L*W*H: 4700*1900*3100mm
CNC & Tooling
- Standard CNC system: DA56S; DA66T recommended for machines with more than (4+1) axes
- X and R axis CNC back gauge; back gauge fingers move along linear guides
- Upper die: mechanical quick clamping device
- Lower die: 2‑V quick-change clamping
- Front supports: step-pitch adjustment
Notes
Multiple variant configurations (models listed above) are provided with specific parameter tables for each model. Separate detailed parameter tables are available per model.
