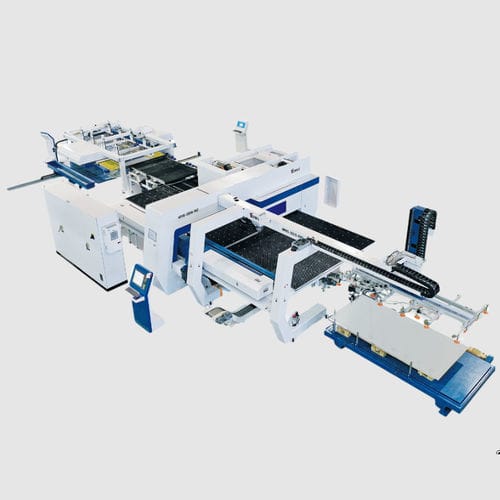

Automatic punching machine sheet metalpunchingshearing
Add to favorites
Compare this product
Characteristics
- Control
- automatic
- Product handled
- sheet metal
- Associated function
- punching, shearing
- Other characteristics
- multifunction
- Pressing force
300,000 N
- Cadence
2,300 rpm
(14,451.3 rad.min-1)- X travel
1,000 mm, 2,500 mm
(39.37 in, 98.43 in)- Y travel
1,500 mm
(59.06 in)- Plate thickness
Min.: 0 mm
(0 in)Max.: 6.35 mm
(0.25 in)
Description
Product overview
Integrated punch-shear combi cell for high-throughput sheet metal processing. Nominal stamping force: 300 kN. Designed to handle carbon and stainless steel sheets within the indicated thickness and size ranges.
Technical parameters
Industry applications
Operational highlights
Options & documentation
Integrated punch-shear combi cell for high-throughput sheet metal processing. Nominal stamping force: 300 kN. Designed to handle carbon and stainless steel sheets within the indicated thickness and size ranges.
Technical parameters
- Nominal stamping force: 300 kN
- Maximum punching plate thickness: 6.35 mm
- Maximum shear plate thickness: 4.0 mm (Carbon steel); 3.0 mm (Stainless steel)
- Maximum single shear size: 1000×1500 mm
- Maximum machined sheet within the beam stroke: 2500×1500 mm
- Punch punching frequency: 2300 cpm
- Number of consecutive half cuts per minute: ≥60 cpm
Industry applications
- Electrical industry
- Home appliance industry
- Lift / elevator industry
- Metal curtain wall industry
- New energy industry
- Precision sheet metal manufacturing
Operational highlights
- Combined punching and shearing reduces part handling and alignment steps
- High cycle capability: punching up to 2300 cpm supports mass production
- Large workable sheet footprint within beam stroke for oversized parts
- Suitable for carbon and stainless steel with specified thickness limits
Options & documentation
- Available options: tooling sets, material clamps, automation/interface kits
- Product manual: downloadable PDF available on request
