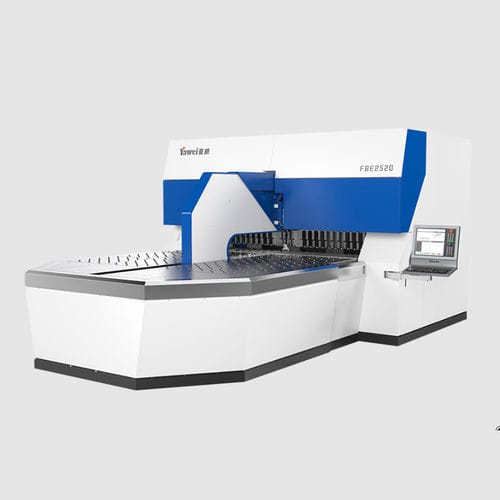

Servo-electric bender FBE series
sheet metalautomaticCNC

Servo-electric bender - FBE series - JIANGSU YAWEI MACHINE TOOL - sheet metal / automatic / CNC
Servo-electric bender - FBE series - JIANGSU YAWEI MACHINE TOOL - sheet metal / automatic / CNC
Add to favorites
Compare this product

Characteristics

Operation
servo-electric
Product handled
sheet metal
Control
automatic, CNC
Associated function
forming
Other characteristics
precision, with multi-stack tooling, multi-axis
Bending capacity

Max.: 4 mm
(0.16 in)

Min.: 0.35 mm
(0.01 in)

Bending length

Max.: 320 cm
(126 in)

Min.: 250 cm
(98 in)

Overall length

6,000 mm, 7,000 mm
(236 in, 276 in)

Overall width

400 cm, 500 cm
(157 in, 197 in)

Total height

260 cm, 265 cm
(102 in, 104 in)

Weight

25,500 kg, 30,500 kg
(56,218 lb, 67,241 lb)

Description

Overview
  • Full touchscreen HMI integrated with a powerful CNC control.
  • Automatic tool change device to accelerate setup and operation.
  • High-flexibility positioning device for asymmetric workpieces.
  • Embedded precision compensation for consistent part quality.
  • New industrial exterior design.


Product Parameter — FBE2520
Maximum diagonal length of sheet: 2800 mm
Max folding length: 2500 mm
Max folding height: 200 mm
Max sheet thickness (Mild steel 410 MPa): 3 mm
Max sheet thickness (Stainless steel 600 MPa): 2 mm
Max sheet thickness (Aluminum alloy 265 MPa): 4 mm
Minimum sheet thickness: 0.35 mm
Servo axes: 21
Dimensions (L×W×H): 6×4×2.6 m
Machine weight: 25500 kg

Product Parameter — FBE3220
Maximum diagonal length of sheet: 3500 mm
Max folding length: 3200 mm
Max folding height: 200 mm
Max sheet thickness (Mild steel 410 MPa): 3 mm
Max sheet thickness (Stainless steel 600 MPa): 2 mm
Max sheet thickness (Aluminum alloy 265 MPa): 4 mm
Minimum sheet thickness: 0.35 mm
Servo axes: 21
Dimensions (L×W×H): 7×5×2.65 m
Machine weight: 30500 kg

Technical specifications
  • Model options: FBE2520, FBE3220.
  • Human-machine interface: Full touchscreen with powerful CNC system.
  • Tooling: Automatic tool change device for setup and efficiency.
  • Positioning: High-flexibility positioning device for asymmetric workpieces.
  • Precision: Embedded precision compensation solution.
  • Maximum diagonal length: FBE2520 = 2800 mm; FBE3220 = 3500 mm.
  • Maximum folding length: FBE2520 = 2500 mm; FBE3220 = 3200 mm.
  • Maximum folding height: 200 mm (both models).
  • Maximum sheet thickness (Mild steel 410 MPa): 3 mm (both models).
  • Maximum sheet thickness (Stainless steel 600 MPa): 2 mm (both models).
  • Maximum sheet thickness (Aluminum alloy 265 MPa): 4 mm (both models).
  • Minimum sheet thickness: 0.35 mm (both models).
  • Servo axes: 21 axes (both models).
  • Overall dimensions (L×W×H): FBE2520 = 6×4×2.6 m; FBE3220 = 7×5×2.65 m.
  • Machine weight: FBE2520 = 25500 kg; FBE3220 = 30500 kg.
