Servo-electric press brake FBC series
CNCwith automatic tool changerautomatic

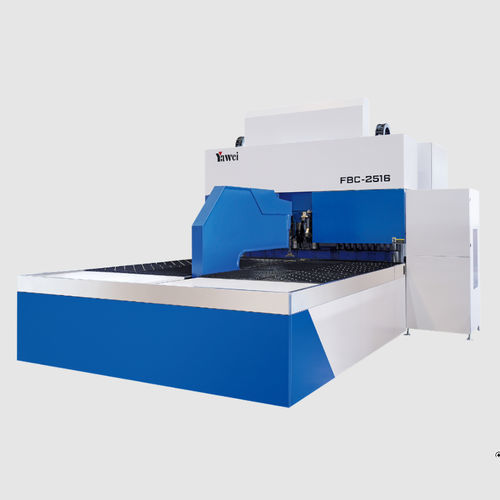

Servo-electric press brake - FBC series - JIANGSU YAWEI MACHINE TOOL - CNC / with automatic tool changer / automatic
Servo-electric press brake - FBC series - JIANGSU YAWEI MACHINE TOOL - CNC / with automatic tool changer / automatic
Add to favorites
Compare this product

Characteristics

Operation
servo-electric
Control
CNC
Other characteristics
precision, automatic, automated, with automatic tool changer, eco-friendly, precise
Folding length

2,000 mm, 2,500 mm, 3,000 mm
(78.7 in, 98.4 in, 118.1 in)

Machine length

4,600 mm, 5,500 mm, 6,600 mm
(181 in, 217 in, 260 in)

Machine width

4,600 mm, 4,900 mm, 5,400 mm
(181.1 in, 192.91 in, 212.6 in)

Machine height

3,100 mm, 3,200 mm
(122.05 in, 125.98 in)

Bale weight

14,300 kg, 20,000 kg, 23,400 kg
(31,526 lb, 44,092 lb, 51,588 lb)

Description

Product overview
  • Hinge-type die adaptable to complex-shaped workpieces to overcome limitations of fixed pressing dies.
  • Automatic tool/mold change allows quick size adjustment and die replacement during production.
  • Pneumatic hinge avoids collisions on the forming side and prevents surface scratches.
  • Full electric servo control with 20 axes for accurate, energy-efficient operation.


Product Parameter — FBC2016
Maximum diagonal length of sheet: 2400 mm
Max folding length: 2000 mm
Max folding height: 165 mm
Max sheet thickness (Mild steel 410 MPa): 2 mm
Max sheet thickness (Stainless steel 600 MPa): 1.5 mm
Max sheet thickness (Al alloy 265 MPa): 3 mm
Minimum sheet thickness: 0.35 mm
Servo axes: 20
Dimensions (L×W×H): 4.6 × 4.6 × 3.1 m
Machine weight: 14300 kg


Product Parameter — FBC2516
Maximum diagonal length of sheet: 2800 mm
Max folding length: 2500 mm
Max folding height: 165 mm
Max sheet thickness (Mild steel 410 MPa): 2 mm
Max sheet thickness (Stainless steel 600 MPa): 1.5 mm
Max sheet thickness (Al alloy 265 MPa): 3 mm
Minimum sheet thickness: 0.35 mm
Servo axes: 20
Dimensions (L×W×H): 5.5 × 4.9 × 3.2 m
Machine weight: 20000 kg


Product Parameter — FBC3016
Maximum diagonal length of sheet: 3400 mm
Max folding length: 3000 mm
Max folding height: 165 mm
Max sheet thickness (Mild steel 410 MPa): 2 mm
Max sheet thickness (Stainless steel 600 MPa): 1.5 mm
Max sheet thickness (Al alloy 265 MPa): 3 mm
Minimum sheet thickness: 0.35 mm
Servo axes: 20
Dimensions (L×W×H): 6.6 × 5.4 × 3.2 m
Machine weight: 23400 kg


Features / Technical specifications
  • Series: FBC series automatic tool-changing CNC panel bender (models FBC2016, FBC2516, FBC3016).
  • Tool change: Fully automatic tool/mold change with quick size adjustment, supporting in-process die replacement.
  • Die type: Hinge die for complex shapes; pneumatic hinge for forming-side avoidance to protect the workpiece surface.
  • Control: Full electric servo control — 20 axes for precision positioning and repeatability.
  • Material capacity (typical): Mild steel (410 MPa) up to 2 mm; Stainless steel (600 MPa) up to 1.5 mm; Aluminum alloy (265 MPa) up to 3 mm.
  • Minimum sheet thickness: 0.35 mm.
  • Applications: Panel fabrication, enclosures, HVAC components, electrical cabinets, and complex-profile sheet parts.
