Servo-electric press brake PBE series

high-speedcompactprecision

Product overview
High-speed, high-precision electric servo press brake designed for bending small and medium-sized parts. Fully electric, oil-free drive reduces energy consumption and maintenance. Cantilever control with adjustable table height improves operator access and setup. Compact footprint enables integration into diverse production lines and simplifies transport.

Available models

• PBE-25/850
• PBE-35/1250
• PBE-60/2050
• PBE-110/3100

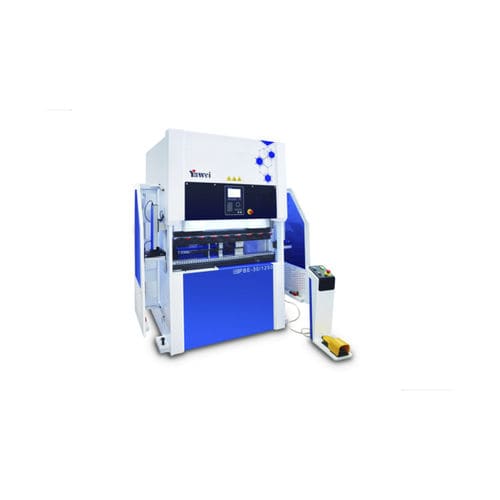

• PBED-35/1250
• PBED-60/2050

Model specifications
PBED-35/1250
Nominal force: 350 kN
Table length A: 1250 mm
Column spacing B: 1050 mm
Throat opening D: 250 mm
Slider stroke C: 150 mm
Mould height E: 480 mm
Slider speed: 200 mm/s; 30 mm/s; 200 mm/s
Motor power: 6.3*2
Overall dimension L×W×H: 1790×1350×2380 mm
Total weight: 3000 kg

PBE-110/3100
Nominal force: 1100 kN
Table length A: 3100 mm
Column spacing B: 2600 mm
Throat opening D: 410 mm
Slider stroke C: 215 mm
Mould height E: 600 mm
Slider speed: 180 mm/s; 30 mm/s; 180 mm/s
Motor power: 37*2
Overall dimension L×W×H: 3580×1570×2715 mm
Total weight: 7500 kg

PBE-60/2050
Nominal force: 600 kN
Table length A: 2050 mm
Column spacing B: 1750 mm
Throat opening D: 350 mm
Slider stroke C: 190 mm
Mould height E: 495 mm
Slider speed: 200 mm/s; 30 mm/s; 200 mm/s
Motor power: 15*2
Overall dimension L×W×H: 2800×1485×2400 mm
Total weight: 5500 kg

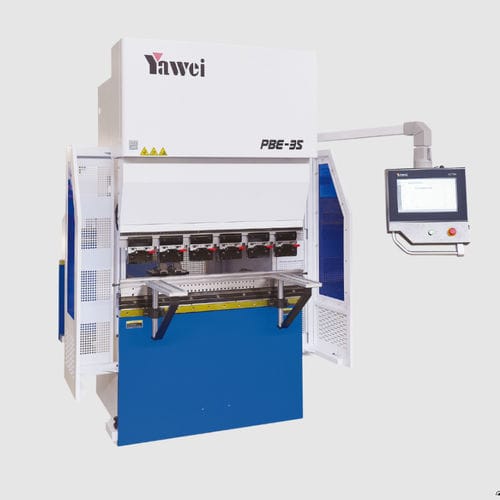

PBE-35/1250
Nominal force: 350 kN
Table length A: 1250 mm
Column spacing B: 1050 mm
Throat opening D: 250 mm
Slider stroke C: 150 mm
Mould height E: 480 mm
Slider speed: 200 mm/s; 30 mm/s; 200 mm/s
Motor power: 7.5*2
Overall dimension L×W×H: 1940×1500×2380 mm
Total weight: 3000 kg

PBE-25/850
Nominal force: 250 kN
Table length A: 850 mm
Column spacing B: 900 mm
Throat opening D: 250 mm
Slider stroke C: 190 mm
Mould height E: 520 mm
Slider speed: 200 mm/s; 30 mm/s; 200 mm/s
Motor power: 11 kW
Overall dimension L×W×H: 1790×1320×2340 mm
Total weight: 3000 kg

PBED-60/2050
Nominal force: 600 kN
Table length A: 2050 mm
Column spacing B: 1750 mm
Throat opening D: 350 mm
Slider stroke C: 190 mm
Mould height E: 495 mm
Slider speed: 200 mm/s; 30 mm/s; 200 mm/s
Motor power: 9.5*2
Overall dimension L×W×H: 2800×1485×2600 mm
Total weight: 5500 kg

Key features

• Fully electric, oil-free servo drive for reduced energy consumption and maintenance.
• High speed and precision suitable for small and medium part production.
• Cantilever control and adjustable table height for improved access and faster tooling.
• Compact footprint and multiple models to match different production requirements.

Technical characteristics

• PBE/PBED series covers 250 kN to 1100 kN nominal force and table lengths from 850 mm to 3100 mm.
• Throat opening (D): 250 mm / 350 mm / 410 mm depending on model; slider stroke (C): 150–215 mm.
• Multi-stage slider speeds (examples: 200 mm/s, 30 mm/s); mould height E typically 480–600 mm.
• Motor power and overall dimensions vary by model — see model specifications for details.
