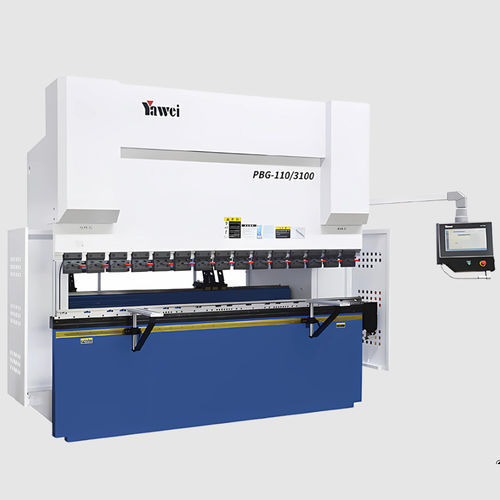

Servo-hydraulic press brake PBG seriesCNChigh-speedcompact
Add to favorites
Compare this product
Characteristics
- Operation
- servo-hydraulic
- Control
- CNC
- Other characteristics
- high-speed, compact, high-performance, high-power, fast, eco-friendly
- Press force
Min.: 1,100 kN
Max.: 2,200 kN
- Folding length
Min.: 3,100 mm
(122 in)Max.: 4,500 mm
(177.2 in)- Engine power
Min.: 15.8 kW
(21.48 hp)Max.: 22 kW
(29.91 hp)- Machine length
Min.: 3,670 mm
(144 in)Max.: 5,070 mm
(200 in)- Machine width
Min.: 1,430 mm
(56.3 in)Max.: 1,750 mm
(68.9 in)- Machine height
Min.: 2,650 mm
(104.33 in)Max.: 2,950 mm
(116.14 in)- Bale weight
Min.: 7,000 kg
(15,432 lb)Max.: 12,800 kg
(28,219 lb)- Maximale stroke
215 mm
(8 in)
Description
Overview
Dual servo motor drives with dual oil pump technology deliver fast cycle times and high productivity. Advanced pressure control improves energy efficiency and reduces oil consumption while enhancing machine stability. Compact oil tank design and a pipeless structure minimize maintenance and the risk of oil leakage.
Key features
Available models
Technical parameters (selected models)
PBG-110/4500 Curtain wall
Bending pressure: 1100 kN
Bending length A: 4500 mm
Distance between columns B: 3800 mm
Throat depth D: 550 mm
Slider stroke C: 215 mm
Mould height E: 630 mm
Slider speed: 220 mm/s; 18 mm/s; 200 mm/s
Main motor power: 2×7.9 kW
Oil tank volume: 2×60 L
Overall dimension L×W×H: 5070×1700×2870 mm
Machine weight: 9500 kg
PBG-110/4100 Curtain wall
Bending pressure: 1100 kN
Bending length A: 4100 mm
Distance between columns B: 3600 mm
Throat depth D: 550 mm
Slider stroke C: 215 mm
Mould height E: 630 mm
Slider speed: 220 mm/s; 18 mm/s; 200 mm/s
Main motor power: 2×7.9 kW
Oil tank volume: 2×60 L
Overall dimension L×W×H: 4670×1700×2780 mm
Machine weight: 8800 kg
PBG-220/4100
Bending pressure: 2200 kN
Bending length A: 4100 mm
Distance between columns B: 3600 mm
Throat depth D: 410 mm
Slider stroke C: 215 mm
Mould height E: 550 mm
Slider speed: 180 mm/s; 15 mm/s; 180 mm/s
Main motor power: 2×11 kW
Oil tank volume: 2×80 L
Overall dimension L×W×H: 4710×1750×2950 mm
Machine weight: 12800 kg
PBG-220/3100
Bending pressure: 2200 kN
Bending length A: 3100 mm
Distance between columns B: 2600 mm
Throat depth D: 410 mm
Slider stroke C: 215 mm
Mould height E: 550 mm
Slider speed: 180 mm/s; 15 mm/s; 180 mm/s
Main motor power: 2×11 kW
Oil tank volume: 2×80 L
Overall dimension L×W×H: 3710×1750×2850 mm
Machine weight: 10800 kg
PBG-160/4100
Bending pressure: 1600 kN
Bending length A: 4100 mm
Distance between columns B: 3600 mm
Throat depth D: 410 mm
Slider stroke C: 215 mm
Mould height E: 550 mm
Slider speed: 220 mm/s; 18 mm/s; 200 mm/s
Main motor power: 2×7.9 kW
Oil tank volume: 2×60 L
Overall dimension L×W×H: 4690×1500×2850 mm
Machine weight: 10500 kg
PBG-160/3100
Bending pressure: 1600 kN
Bending length A: 3100 mm
Distance between columns B: 2600 mm
Throat depth D: 410 mm
Slider stroke C: 215 mm
Mould height E: 550 mm
Slider speed: 220 mm/s; 18 mm/s; 200 mm/s
Main motor power: 2×7.9 kW
Oil tank volume: 2×60 L
Overall dimension L×W×H: 3690×1500×2780 mm
Machine weight: 8600 kg
PBG-110/3100
Bending pressure: 1100 kN
Bending length A: 3100 mm
Distance between columns B: 2600 mm
Throat depth D: 410 mm
Slider stroke C: 215 mm
Mould height E: 550 mm
Slider speed: 220 mm/s; 18 mm/s; 200 mm/s
Main motor power: 2×7.9 kW
Oil tank volume: 2×60 L
Overall dimension L×W×H: 3670×1430×2650 mm
Machine weight: 7000 kg
Dual servo motor drives with dual oil pump technology deliver fast cycle times and high productivity. Advanced pressure control improves energy efficiency and reduces oil consumption while enhancing machine stability. Compact oil tank design and a pipeless structure minimize maintenance and the risk of oil leakage.
Key features
- Dual-servo drive with dual oil pumps for higher speed and responsiveness
- Advanced pressure control for reduced energy use and stable forming
- Compact oil tank and pipeless layout to lower maintenance and prevent leaks
- Multi-stage slider speeds and selectable motor power according to model
- Range of bending forces from 1100 kN up to 2200 kN and bending lengths from 3100 mm to 4500 mm
Available models
- PBG-63/2050
- PBG-63/2550
- PBG-110/3100
- PBG-110/4100 Curtain wall
- PBG-110/4500 Curtain wall
- PBG-160/3100
- PBG-160/4100
- PBG-220/3100
- PBG-220/4100
Technical parameters (selected models)
PBG-110/4500 Curtain wall
Bending pressure: 1100 kN
Bending length A: 4500 mm
Distance between columns B: 3800 mm
Throat depth D: 550 mm
Slider stroke C: 215 mm
Mould height E: 630 mm
Slider speed: 220 mm/s; 18 mm/s; 200 mm/s
Main motor power: 2×7.9 kW
Oil tank volume: 2×60 L
Overall dimension L×W×H: 5070×1700×2870 mm
Machine weight: 9500 kg
PBG-110/4100 Curtain wall
Bending pressure: 1100 kN
Bending length A: 4100 mm
Distance between columns B: 3600 mm
Throat depth D: 550 mm
Slider stroke C: 215 mm
Mould height E: 630 mm
Slider speed: 220 mm/s; 18 mm/s; 200 mm/s
Main motor power: 2×7.9 kW
Oil tank volume: 2×60 L
Overall dimension L×W×H: 4670×1700×2780 mm
Machine weight: 8800 kg
PBG-220/4100
Bending pressure: 2200 kN
Bending length A: 4100 mm
Distance between columns B: 3600 mm
Throat depth D: 410 mm
Slider stroke C: 215 mm
Mould height E: 550 mm
Slider speed: 180 mm/s; 15 mm/s; 180 mm/s
Main motor power: 2×11 kW
Oil tank volume: 2×80 L
Overall dimension L×W×H: 4710×1750×2950 mm
Machine weight: 12800 kg
PBG-220/3100
Bending pressure: 2200 kN
Bending length A: 3100 mm
Distance between columns B: 2600 mm
Throat depth D: 410 mm
Slider stroke C: 215 mm
Mould height E: 550 mm
Slider speed: 180 mm/s; 15 mm/s; 180 mm/s
Main motor power: 2×11 kW
Oil tank volume: 2×80 L
Overall dimension L×W×H: 3710×1750×2850 mm
Machine weight: 10800 kg
PBG-160/4100
Bending pressure: 1600 kN
Bending length A: 4100 mm
Distance between columns B: 3600 mm
Throat depth D: 410 mm
Slider stroke C: 215 mm
Mould height E: 550 mm
Slider speed: 220 mm/s; 18 mm/s; 200 mm/s
Main motor power: 2×7.9 kW
Oil tank volume: 2×60 L
Overall dimension L×W×H: 4690×1500×2850 mm
Machine weight: 10500 kg
PBG-160/3100
Bending pressure: 1600 kN
Bending length A: 3100 mm
Distance between columns B: 2600 mm
Throat depth D: 410 mm
Slider stroke C: 215 mm
Mould height E: 550 mm
Slider speed: 220 mm/s; 18 mm/s; 200 mm/s
Main motor power: 2×7.9 kW
Oil tank volume: 2×60 L
Overall dimension L×W×H: 3690×1500×2780 mm
Machine weight: 8600 kg
PBG-110/3100
Bending pressure: 1100 kN
Bending length A: 3100 mm
Distance between columns B: 2600 mm
Throat depth D: 410 mm
Slider stroke C: 215 mm
Mould height E: 550 mm
Slider speed: 220 mm/s; 18 mm/s; 200 mm/s
Main motor power: 2×7.9 kW
Oil tank volume: 2×60 L
Overall dimension L×W×H: 3670×1430×2650 mm
Machine weight: 7000 kg
