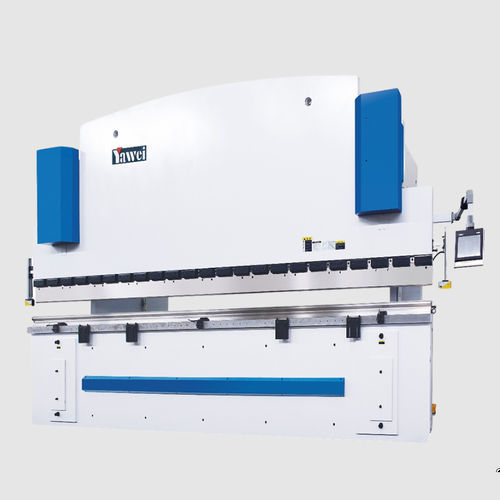

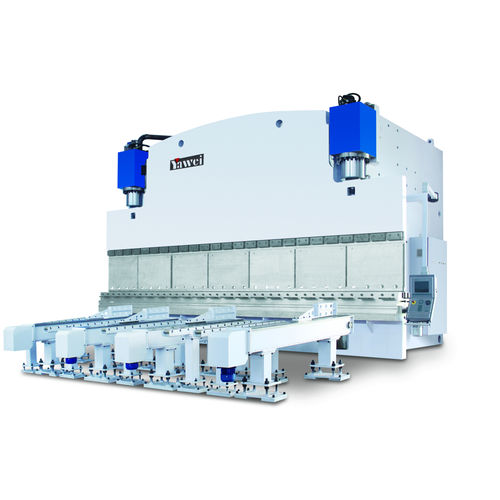

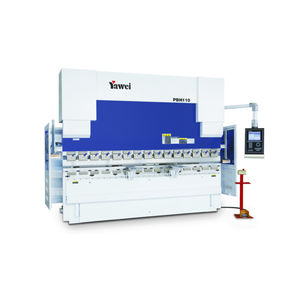

Servo-hydraulic press brake PBH(A) series

CNClargeprecision

Product description
Steel plate raw material machined on a large five-axis machining center to ensure structural accuracy and component fit.
Electro-hydraulic servo system with fully closed-loop control for synchronous ram movement.
Dual-rail ram guidance using self-lubricating material for prolonged precision.
Worktable fitted with crowning device and throat-deformation compensation to ensure bending accuracy.
Hydraulic cylinders feature spherical floating supports and specially guided piston rods for strong off-center load resistance.
Backgauge driven by a digital AC servo motor with precision ball screw transmission and linear guide guidance.

Available models

• PBH(A)-160/5100
• PBH(A)-220/5100
• PBH(A)-220/6100
• PBH(A)-300/5100
• PBH(A)-300/6200
• PBH(A)-400/4100
• PBH(A)-400/5100
• PBH(A)-400/6200
• PBH(A)-500/4100
• PBH(A)-500/5100
• PBH(A)-500/6200
• PBH(A)-500/8200
• PBH(A)-630/4100
• PBH(A)-630/5100
• PBH(A)-630/6200
• PBH(A)-630/8200
• PBH(A)-800/6200
• PBH(A)-800/8200
• PBH(A)-1000/6200
• PBH(A)-1000/8200
• PBH(A)-1200/6200
• PBH(A)-1200/8200
• PBH(A)-1200/12000
• PBH(A)-1600/8200
• PBH(A)-1600/12000
• PBH(A)-2000/12000
• PBH(A)-2500/12000
• PBH(A)-3000/12000

Selected model specification (PBH(A)-160/5100)
Nominal force: 1600 kN
Table length A: 5100 mm
Column spacing B: 4200 mm
Throat opening D: 410 mm
Slider stroke C: 215 mm
Maximum opening height: 450 mm
Slider speeds: 120 mm/s, 10 mm/s, 90 mm/s
Motor power: 11 kW
Oil tank volume: 400 L
Overall dimensions L*W*H: 5400*1850*3350 mm
Total machine weight: 20000/17200 kg

Other example model specs (summary)
PBH(A)-220/5100: Nominal force 2200 kN; Table length 5100 mm; Column spacing 4200 mm; Throat opening 410 mm; Slider stroke 215 mm; Max opening height 450 mm; Slider speeds 120 mm/s, 9 mm/s, 100 mm/s; Motor power 15 kW; Oil tank 500 L; Overall 5400*1860*3380 mm; Weight 23000/20000 kg.
PBH(A)-220/6200: Nominal force 2200 kN; Table length 6200 mm; Column spacing 5100 mm; Throat opening 410 mm; Slider stroke 215 mm; Max opening height 450 mm; Slider speeds 120 mm/s, 9 mm/s, 100 mm/s; Motor power 15 kW; Oil tank 500 L; Overall 6500*1850*3430 mm; Weight 28000/23000 kg.
PBH(A)-300 variants: Nominal force up to 3000 kN; Typical table lengths 5100 or 6200 mm; Slider stroke 265 mm; Max opening height 500 mm; Motor power 22 kW; Oil tank up to 750 L; Dimensions and weights vary by configuration.
Higher-capacity variants available from 4000 kN up to 30000 kN with table lengths (4100/5100/6200/8200/12000 mm), scaled column spacing and throat openings, increased slider strokes and opening heights, motor power up to multi-motor configurations (e.g. 2×55 kW), oil tank volumes up to several thousand liters, and model-specific dimensions and weights.

Technical characteristics

• Material and structure: steel plate machined on a large five-axis machining center.
• Hydraulic system: electro-hydraulic servo with closed-loop control for synchronous ram movement.
• Ram guidance: dual rail structure with self-lubricating material.
• Worktable compensation: crowning system and throat deformation compensation.
• Hydraulic cylinder: spherical floating support and guided piston rod for strong off-center load capability.
• Backgauge: digital AC servo motor, precision ball screw transmission, linear guide rail guidance.
• Nominal force range: 1600 kN to 30000 kN across models.
• Example slider strokes: 215 mm, 265 mm, 315 mm, 410 mm depending on model.
• Example maximum opening heights: 450 mm, 500 mm, 520 mm, 620 mm, 720 mm, 720–1250 mm depending on model.
• Motor power range: 11 kW up to multi-motor configurations (e.g. 2×90 kW) depending on model.
• Oil tank volume range: 400 L up to several thousand liters depending on model.
• Multiple table lengths and column spacings available to suit bending widths (e.g. 4100, 5100, 6200, 8200, 12000 mm).
