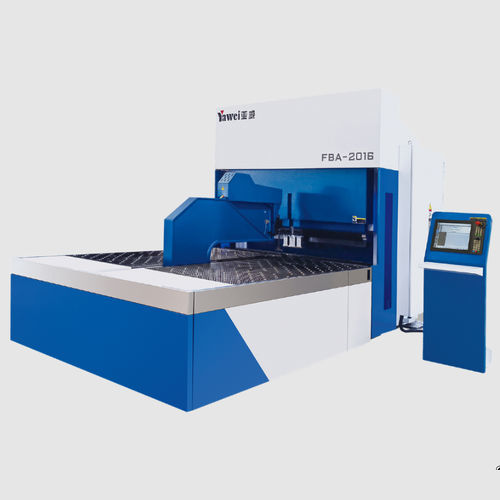

Servo-electric press brake FBA series

CNCworkshopprecision

Product overview

• Family of CNC panel benders designed for precision bending of sheet metal with a full-touch HMI and advanced CNC control.
• Robust mechanical clamping and flexible positioning for repeatable part handling.
• Models cover a wide range of folding lengths, heights and material thicknesses to suit fabrication, enclosure and HVAC production.
• Designed for low energy consumption and reduced noise in production environments.

Available models / Options

• FBA1516
• FBA1516 (Sucker type)
• FBA2016
• FBA2020
• FBA2030

Technical specifications
FBA1516
Maximum diagonal sheet length: 1850 mm
Maximum folding length: 1500 mm
Maximum folding height: 165 mm
Max sheet thickness (mild steel 410 N/mm²): 1.2 mm
Max sheet thickness (stainless steel 660 N/mm²): 0.8 mm
Max sheet thickness (aluminum alloy 265 N/mm²): 1.6 mm
Minimum sheet thickness: 0.5 mm
Servo axes: 12
Total power: 28 kW
Dimensions (L*W*H): 4.4*2.2*2.45 m
Machine weight: 10000 kg

FBA1516 (Sucker type)
Maximum diagonal sheet length: 1850 mm
Maximum folding length: 1500 mm
Maximum folding height: 165 mm
Max sheet thickness (mild steel 410 N/mm²): 1.2 mm
Max sheet thickness (stainless steel 660 N/mm²): 0.8 mm
Max sheet thickness (aluminum alloy 265 N/mm²): 1.6 mm
Minimum sheet thickness: 0.5 mm
Servo axes: 9
Total power: 25 kW
Dimensions (L*W*H): 3.4*2.2*2.45 m
Machine weight: 9500 kg

FBA2016
Maximum diagonal sheet length: 2400 mm
Maximum folding length: 2000 mm
Maximum folding height: 165 mm
Max sheet thickness (mild steel 410 N/mm²): 2.0 mm
Max sheet thickness (stainless steel 660 N/mm²): 1.2 mm
Max sheet thickness (aluminum alloy 265 N/mm²): 3.0 mm
Minimum sheet thickness: 0.5 mm
Servo axes: 12
Total power: 36 kW
Dimensions (L*W*H): 4.5*2.8*2.8 m
Machine weight: 14000 kg

FBA2020
Maximum diagonal sheet length: 2400 mm
Maximum folding length: 2000 mm
Maximum folding height: 200 mm
Max sheet thickness (mild steel 410 N/mm²): 2.0 mm
Max sheet thickness (stainless steel 660 N/mm²): 1.2 mm
Max sheet thickness (aluminum alloy 265 N/mm²): 3.0 mm
Minimum sheet thickness: 0.5 mm
Servo axes: 12
Total power: 36 kW
Dimensions (L*W*H): 4.5*2.8*3.0 m
Machine weight: 17000 kg

FBA2030
Maximum diagonal sheet length: 2400 mm
Maximum folding length: 2000 mm
Maximum folding height: 300 mm
Max sheet thickness (mild steel 410 N/mm²): 2.0 mm
Max sheet thickness (stainless steel 660 N/mm²): 1.5 mm
Max sheet thickness (aluminum alloy 265 N/mm²): 3.0 mm
Minimum sheet thickness: 0.35 mm
Servo axes: 13
Angle accuracy: ±30′
Total power: 36 kW
Dimensions (L*W*H): 4.6*2.8*3.2 m
Machine weight: 15800 kg

Characteristics / technical specifications

• Human–machine interface: full-touch HMI with an advanced CNC control system for program management and repeatability.
• Clamping: reliable mechanical clamping combined with flexible positioning devices for complex geometries.
• Material capability: mild steel, stainless steel and aluminum alloys (maximum thickness depends on model and material tensile strength).
• Minimum sheet thickness: 0.35–0.5 mm depending on model.
• Servo axes: from 9 up to 13 across the range (larger models may provide additional axes).
• Total installed power: 25–36 kW depending on model.
• Footprint and weight vary by model — check model-specific dimensions for layout and transport planning.

Images & video
Product page includes a gallery of sample images and a demonstration video showing machine layout, tooling and typical production results.
