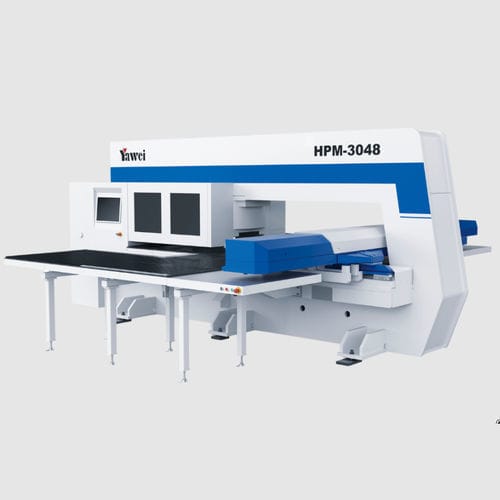

CNC punching machine HPM series
servo-drivensheet metalforming

CNC punching machine - HPM series - JIANGSU YAWEI MACHINE TOOL - servo-driven / sheet metal / forming
CNC punching machine - HPM series - JIANGSU YAWEI MACHINE TOOL - servo-driven / sheet metal / forming
CNC punching machine - HPM series - JIANGSU YAWEI MACHINE TOOL - servo-driven / sheet metal / forming - image - 2
Add to favorites
Compare this product

Characteristics

Control
CNC
Drive type
servo-driven
Product handled
sheet metal
Associated function
forming
Other characteristics
high-speed, turret
Pressing force

294,000 N

Cadence

Max.: 2,500 rpm
(15,708 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

X travel

1,250 mm
(49.21 in)

Y travel

5,000 mm
(196.85 in)

Plate thickness

Max.: 6.35 mm
(0.25 in)

Min.: 0 mm
(0 in)

Description

Product overview
  • The HPM series CNC turret punch is a servo-driven turret press engineered for high-speed, repeatable sheet metal punching and forming.
  • Servo-controlled main shaft and independent turret drives ensure stable, accurate motion and fast cycle rates.
  • Full-touch HMI and advanced numerical control simplify programming and machine operation.


Key features
  • Constant-mesh rotating turret with patented positioning for improved repeatability.
  • Dual-servo drive for the crank-link mechanism reduces inertia and increases responsiveness.
  • Programmable floating clamps adapt to sheet conditions to reduce distortion and setup time.
  • Large-capacity tool magazine (standard 56 positions; optional 64 positions) and independent upper/lower turret drives for quicker tooling changes.
  • Vacuum scrap extraction system prevents waste rebound and clogging during punching.
  • Energy-efficient design with low noise operation and options for automation integration.


Technical parameters — HPM-3048
  • Nominal force: 294 kN
  • Max processing plate size (with one repositioning): 1250 × 5000 mm
  • Max plate thickness (carbon steel): 6.35 mm
  • Max plate thickness (stainless steel): 4 mm
  • Max single punch diameter: Φ88.9 mm
  • Standard die positions: 56 (optional 64)
  • Punching accuracy: ±0.1 mm
  • Punching frequency: up to 2500 cpm (model dependent)
  • Max punching frequency (1 mm step, 6 mm stroke): 900 cpm
  • Max punching frequency (25.4 mm step, 6 mm stroke): 450 cpm
  • Max plate travelling speed: 102 m/min
  • Turntable speed: 30 rpm
  • Number of control axes: 7 (X, Y1, Y2, T1, T2, C, Z)
  • Air source requirement: 0.6 MPa
  • Overall dimensions (L×W×H): 5610 × 5000 × 2300 mm
  • Weight: 17500 kg


Technical parameters — HPM-3058
  • Nominal force: 294 kN
  • Max processing plate size (with one repositioning): 1250 × 5000 mm
  • Max plate thickness (carbon steel): 6.35 mm
  • Max plate thickness (stainless steel): 4 mm
  • Max single punch diameter: Φ88.9 mm
  • Standard die positions: 56 (optional 64)
  • Punching accuracy: ±0.1 mm
  • Punching frequency: up to 2500 cpm (model dependent)
  • Max punching frequency (1 mm step, 6 mm stroke): 900 cpm
  • Max punching frequency (25.4 mm step, 6 mm stroke): 450 cpm
  • Max plate travelling speed: 102 m/min
  • Turntable speed: 30 rpm
  • Number of control axes: 7 (X, Y1, Y2, T1, T2, C, Z)
  • Air source requirement: 0.6 MPa
  • Overall dimensions (L×W×H): 6280 × 5000 × 2300 mm
  • Weight: 19000 kg


Applications
  • Suitable for high-volume sheet metal fabrication: electrical cabinets, enclosures, HVAC components, appliance parts and other industrial punched parts.
  • Designed for integration into automated production lines and material handling systems.
  • Options available for custom tooling, automation interfaces and vacuum scrap extraction to match production workflow.
