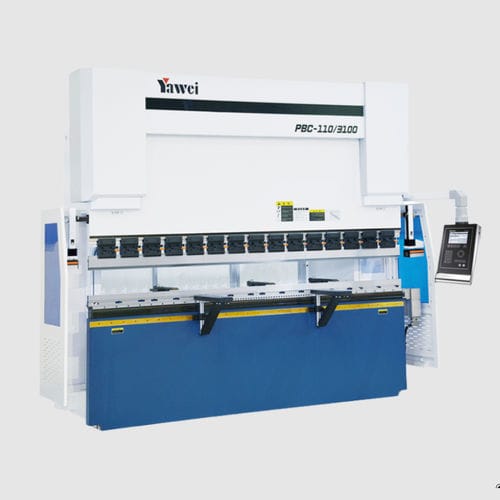

Hydraulic press brake PBC series

CNClargeworkshop

Product overview
Worktable with mechanical crowning system, adjustable point by point to ensure precision and consistent bending results.
Dual-rail slider structure for smoother vertical movement and reduced deviation.
Linear guide rail movable material holder to facilitate vertical handling and positioning of the workpiece.
Control and configuration options support expanded functions while maintaining straightforward operation.

Models

• PBC-50/2050
• PBC-80/2550
• PBC-110/3100
• PBC-110/4100
• PBC-160/3100
• PBC-160/4100
• PBC-220/3100
• PBC-220/4100

Technical data - PBC-50/2050
Bending pressure: 500 kN
Bending length A: 2050 mm
Distance between columns B: 1750 mm
Throat depth D: 350 mm
Slider travel C: 175 mm
Mould height E: 495 mm
Slider speed: 200 mm/s 18 mm/s 200 mm/s
Main motor power: 6.2 kW
Oil tank volume: 150 L
Overall dimension L×W×H: 2690 × 1520 × 2415 mm
Machine weight: 4500 kg

Technical data - PBC-80/2550
Bending pressure: 800 kN
Bending length A: 2550 mm
Distance between columns B: 2150 mm
Throat depth D: 350 mm
Slider travel C: 175 mm
Mould height E: 495 mm
Slider speed: 200 mm/s 18 mm/s 200 mm/s
Main motor power: 8.5 kW
Oil tank volume: 200 L
Overall dimension L×W×H: 3130 × 1520 × 2515 mm
Machine weight: 6000 kg

Technical data - PBC-110/3100
Bending pressure: 1100 kN
Bending length A: 3100 mm
Distance between columns B: 2600 mm
Throat depth D: 410 mm
Slider travel C: 265 mm
Mould height E: 600 mm
Slider speed: 220 mm/s 18 mm/s 200 mm/s
Main motor power: 12.4 kW
Oil tank volume: 200 L
Overall dimension L×W×H: 3600 × 1520 × 2850 mm
Machine weight: 8500 kg

Technical data - PBC-110/4100
Bending pressure: 1100 kN
Bending length A: 4100 mm
Distance between columns B: 3600 mm
Throat depth D: 410 mm
Slider travel C: 265 mm
Mould height E: 600 mm
Slider speed: 220 mm/s 18 mm/s 200 mm/s
Main motor power: 12.4 kW
Oil tank volume: 300 L
Overall dimension L×W×H: 4600 × 1520 × 2850 mm
Machine weight: 9200 kg

Technical data - PBC-160/3100
Bending pressure: 1600 kN
Bending length A: 3100 mm
Distance between columns B: 2600 mm
Throat depth D: 410 mm
Slider travel C: 265 mm
Mould height E: 600 mm
Slider speed: 200 mm/s 15 mm/s 180 mm/s
Main motor power: 17.8 kW
Oil tank volume: 300 L
Overall dimension L×W×H: 3620 × 1570 × 3010 mm
Machine weight: 10000 kg

Technical data - PBC-160/4100
Bending pressure: 1600 kN
Bending length A: 4100 mm
Distance between columns B: 3600 mm
Throat depth D: 410 mm
Slider travel C: 265 mm
Mould height E: 600 mm
Slider speed: 200 mm/s 15 mm/s 180 mm/s
Main motor power: 17.8 kW
Oil tank volume: 400 L
Overall dimension L×W×H: 4620 × 1570 × 3060 mm
Machine weight: 11900 kg

Technical data - PBC-220/3100
Bending pressure: 2200 kN
Bending length A: 3100 mm
Distance between columns B: 2600 mm
Throat depth D: 410 mm
Slider travel C: 265 mm
Mould height E: 600 mm
Slider speed: 160 mm/s 14 mm/s 160 mm/s
Main motor power: 21.4 kW
Oil tank volume: 300 L
Overall dimension L×W×H: 3640 × 1820 × 3025 mm
Machine weight: 12300 kg

Technical data - PBC-220/4100
Bending pressure: 2200 kN
Bending length A: 4100 mm
Distance between columns B: 3600 mm
Throat depth D: 410 mm
Slider travel C: 265 mm
Mould height E: 600 mm
Slider speed: 160 mm/s 14 mm/s 160 mm/s
Main motor power: 21.4 kW
Oil tank volume: 400 L
Overall dimension L×W×H: 4640 × 1820 × 3125 mm
Machine weight: 14000 kg

Features / Technical specifications

• PBC series available in multiple configurations: bending pressures from 500 kN up to 2200 kN and bending lengths from 2050 mm to 4100 mm.
• Key dimensions: throat depth options 350 mm or 410 mm; mould heights typically 495 mm or 600 mm.
• Slider travel varies by model: 175 mm to 265 mm.
• Motor power range across models: 6.2 kW to 21.4 kW.
• Oil tank volume options: 150 L to 400 L depending on model.
• Machine weights and footprints vary by model (examples given in technical sections).
