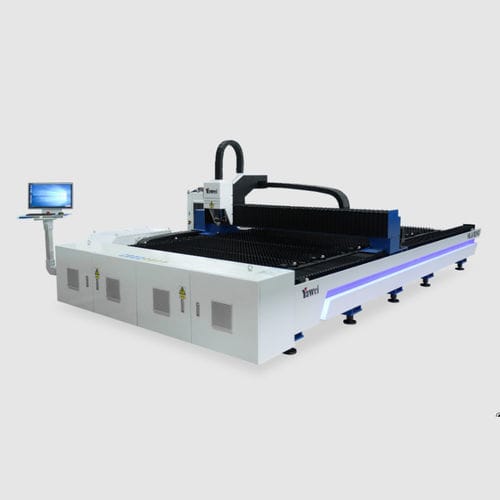

Laser cutting machine HLA series

for metalsheet metalmanual loading

Product description
Compact machine structure with a small footprint for efficient use of floor space.
Open cutting area designed for easy loading and unloading of sheet material and flexible site adaptation.
Dedicated dust extraction port located beneath the cutting area to improve fume and dust removal and ensure long-term stable operation.
Open gantry with dual-drive and single worktable structure for stable motion and process reliability.
Bed welded with aluminum-alloy beam to meet high-acceleration motion requirements.
Separate electrical control cabinet for flexible placement according to site layout.

Product parameters - Models

• HLA-1530
• HLA-2040
• HLA-2560
• HLA-2580
• HLA-25120
• HLA-30130

HLA-1530
Cutting range: 3050*1525mm
X axis stroke: 3070mm
Y axis stroke: 1545mm
Z axis stroke: 120mm
X-Y maximum trajectory speed: 140m/min
X/Y maximum acceleration: 1.2Gm/s²
Positioning accuracy: ±0.03mm
Repositioning accuracy: ±0.02mm
Maximum load of worktable: 900Kg
Machine layout dimension: 5000*3700*2000mm
Laser generator power: 3/6kW

HLA-2040
Cutting range: 4065*2035mm
X axis stroke: 4085mm
Y axis stroke: 2055mm
Z axis stroke: 120mm
X-Y maximum trajectory speed: 140m/min
X/Y maximum acceleration: 1.2Gm/s²
Positioning accuracy: ±0.03mm
Repositioning accuracy: ±0.02mm
Maximum load of worktable: 1500Kg
Machine layout dimension: 6000*4400*2000mm
Laser generator power: 3/6kW

HLA-2560
Cutting range: 6100*2545mm
X axis stroke: 6120mm
Y axis stroke: 2565mm
Z axis stroke: 170mm
X-Y maximum trajectory speed: 140m/min
X/Y maximum acceleration: 1.0Gm/s²
Positioning accuracy: ±0.03mm
Repositioning accuracy: ±0.02mm
Maximum load of worktable: 3000Kg
Machine layout dimension: 8800*5400*2000mm
Laser generator power: 12/20/30/40/50/60/80kW

HLA-2580
Cutting range: 8100*2545mm
X axis stroke: 8120mm
Y axis stroke: 2565mm
Z axis stroke: 170mm
X-Y maximum trajectory speed: 140m/min
X/Y maximum acceleration: 1.0Gm/s²
Positioning accuracy: ±0.03mm
Repositioning accuracy: ±0.02mm
Maximum load of worktable: 6250/9400Kg
Machine layout dimension: 11400*5500*2000mm
Laser generator power: 12/20/30/40/50/60/80kW

HLA-25120
Cutting range: 12100*2545mm
X axis stroke: 12120mm
Y axis stroke: 2565mm
Z axis stroke: 170mm
X-Y maximum trajectory speed: 140m/min
X/Y maximum acceleration: 1.0Gm/s²
Positioning accuracy: ±0.03mm
Repositioning accuracy: ±0.02mm
Maximum load of worktable: 9400/14000Kg
Machine layout dimension: 15500*5500*2000mm
Laser generator power: 12/20/30/40/50/60/80kW

HLA-30130
Cutting range: 13100*3100mm
X axis stroke: 13120mm
Y axis stroke: 3120mm
Z axis stroke: 170mm
X-Y maximum trajectory speed: 100m/min
X/Y maximum acceleration: 0.8Gm/s²
Positioning accuracy: ±0.03mm
Repositioning accuracy: ±0.02mm
Maximum load of worktable: 12000/18000Kg
Machine layout dimension: 17000*6000*2000mm
Laser generator power: 12/20/30/40/50/60/80kW

Technical features / Specifications

• Compact machine structure with a small footprint for efficient floor usage.
• Open cutting area enabling fast loading/unloading and adaptable to various site layouts.
• Dust extraction port beneath the cutting area to enhance fume/dust removal and maintain long-term stable operation.
• Open gantry dual-drive with single worktable for stable motion and process repeatability.
• Bed welded with aluminum-alloy beam to support high-acceleration motion profiles.
• Separate electrical control cabinet for flexible installation within different plant layouts.
• Positioning accuracy: ±0.03mm; Repositioning accuracy: ±0.02mm.
• X-Y maximum trajectory speed: up to 140m/min (model dependent).
• X/Y maximum acceleration: up to 1.2Gm/s² (model dependent).
• Laser generator power options: 3/6kW for smaller models; 12–80kW options for larger models.
