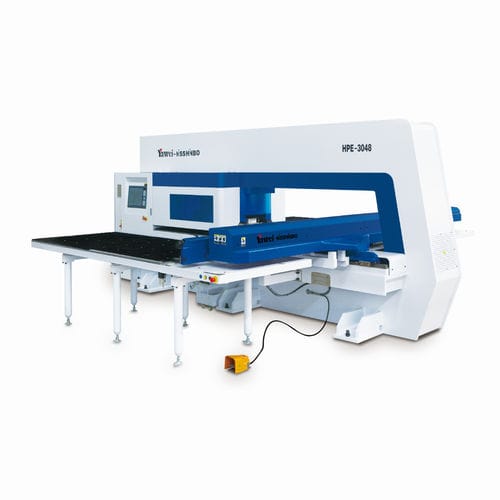

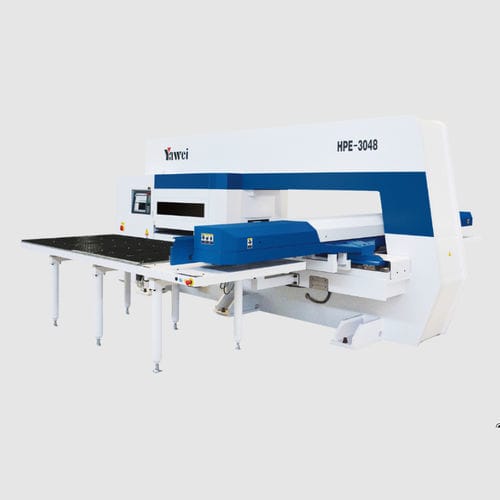

CNC punching machine HPE series

servo-drivenfor metalsheet metal

Product Overview
Servo-controlled punching head with a peak punching rate up to 2300 strokes/min. Full-touch human-machine interface and powerful CNC control deliver precise positioning with dead-point accuracy of 0.01 mm. Patented constant-mesh rotating turret ensures repeatable tool indexing and supports efficient, precise roller forming. Designed for low energy consumption and reduced noise suitable for industrial production lines.

Available Models

• HPE-3078
• HPE-3058
• HPE-3057
• HPE-3048
• HPE-3047
• HPE-3044

Technical Data — HPE-3078

• Nominal force: 294 kN
• Maximum processing plate size (including one repositioning): 2000×5000 mm
• Max plate thickness (carbon steel): 6.35 mm; (stainless steel): 4 mm
• Max diameter of single punch: Φ88.9 mm
• Punching accuracy: ±0.1 mm; dead-point positioning accuracy: 0.01 mm
• Punching frequency: 2300 cpm (peak); max punching frequency (1 mm step, 6 mm stroke): 750 cpm; (25.4 mm step, 6 mm stroke): 410 cpm
• Max sheet travelling speed: 102 m/min
• Turntable speed: 30 rpm
• Number of control axes: 5 (X, Y, T, C, Z)
• Comprehensive working power: 6.1 kW
• Air source requirement: 0.6 MPa
• Overall dimensions (L×W×H): 6920 × 5000 × 2260 mm
• Weight: 25,500 kg

Key Specifications

• Series: HPE series
• Nominal force: 294 kN
• Max punching frequency (peak): 2300 strokes/min
• Punching accuracy: ±0.1 mm; dead-point positioning accuracy: 0.01 mm
• Max diameter of single punch: Φ88.9 mm
• Max material thickness: carbon steel 6.35 mm; stainless steel 4 mm
• Turntable speed: 30 rpm
• Max sheet travelling speed: 102 m/min
• Control axes: 5 (X, Y, T, C, Z)
• Human-machine interface: full touchscreen CNC system
• Variants and max processing sizes: HPE-3078 (2000×5000 mm), HPE-3058 (1500×5000 mm), HPE-3057 (1500×4000 mm), HPE-3048 (1250×5000 mm), HPE-3047 (1250×4000 mm), HPE-3044 (1250×2500 mm)
