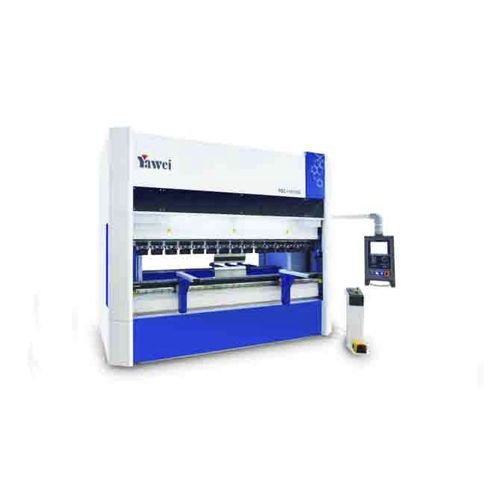

Hybrid press brake PBM seriesCNChigh-speedhigh-performance
Add to favorites
Compare this product
Characteristics
- Operation
- hybrid
- Control
- CNC
- Other characteristics
- precision, high-speed, high-performance, fast, eco-friendly
- Press force
Max.: 2,200 kN
Min.: 1,100 kN
- Folding length
Max.: 4,100 mm
(161.4 in)Min.: 3,100 mm
(122 in)- Engine power
Max.: 30 kW
(40.79 hp)Min.: 2 kW
(2.72 hp)- Machine length
Max.: 4,650 mm
(183 in)Min.: 3,610 mm
(142 in)- Machine width
Max.: 1,850 mm
(72.83 in)Min.: 1,550 mm
(61.02 in)- Machine height
Max.: 3,095 mm
(121.85 in)Min.: 2,935 mm
(115.55 in)- Bale weight
Max.: 14,700 kg
(32,408 lb)Min.: 9,000 kg
(19,842 lb)- Daylight
410 mm
(16 in)- Maximale stroke
265 mm
(10 in)
Description
Product description
Oil-electric hybrid drive with pump-controlled synchronous control technology. High positioning precision, energy-efficient operation and fast cycle speeds make this series suitable for high-precision, high-throughput bending of sheet metal and other workpieces. Configurations and parameters are oriented to meet demanding industrial requirements.
Available models
Technical Parameters — PBM-220/4100
Nominal force: 2200 kN
Table length A: 4100 mm
Column spacing B: 3600 mm
Throat opening D: 410 mm
Slider stroke C: 265 mm
Mould height E: 600 mm
Slider speed: 220 mm/s, 15 mm/s, 200 mm/s
Motor power: 15*2 kW
Overall dimension L*W*H: 4650*1850*3095 mm
Total weight: 14700 kg
Technical Parameters — PBM-220/3100
Nominal force: 2200 kN
Table length A: 3100 mm
Column spacing B: 2600 mm
Throat opening D: 410 mm
Slider stroke C: 265 mm
Mould height E: 600 mm
Slider speed: 220 mm/s, 15 mm/s, 200 mm/s
Motor power: 15*2 kW
Overall dimension L*W*H: 3650*1850*2995 mm
Total weight: 13000 kg
Technical Parameters — PBM-160/4100
Nominal force: 1600 kN
Table length A: 4100 mm
Column spacing B: 3600 mm
Throat opening D: 410 mm
Slider stroke C: 265 mm
Mould height E: 600 mm
Slider speed: 220 mm/s, 18 mm/s, 220 mm/s
Motor power: 7.5*2 kW
Overall dimension L*W*H: 4630*1600*3025 mm
Total weight: 12400 kg
Technical Parameters — PBM-160/3100
Nominal force: 1600 kN
Table length A: 3100 mm
Column spacing B: 2600 mm
Throat opening D: 410 mm
Slider stroke C: 265 mm
Mould height E: 600 mm
Slider speed: 220 mm/s, 18 mm/s, 220 mm/s
Motor power: 7.5*2 kW
Overall dimension L*W*H: 3630*1600*2985 mm
Total weight: 10500 kg
Technical Parameters — PBM-110/4100
Nominal force: 1100 kN
Table length A: 4100 mm
Column spacing B: 3600 mm
Throat opening D: 410 mm
Slider stroke C: 265 mm
Mould height E: 600 mm
Slider speed: 250 mm/s, 20 mm/s, 220 mm/s
Motor power: 5.5*2 kW
Overall dimension L*W*H: 4610*1550*2985 mm
Total weight: 9700 kg
Technical Parameters — PBM-110/3100
Nominal force: 1100 kN
Table length A: 3100 mm
Column spacing B: 2600 mm
Throat opening D: 410 mm
Slider stroke C: 265 mm
Mould height E: 600 mm
Slider speed: 250 mm/s, 20 mm/s, 220 mm/s
Motor power: 5.5*2 kW
Overall dimension L*W*H: 3610*1550*2935 mm
Total weight: 9000 kg
Features / technical specifications
Oil-electric hybrid drive with pump-controlled synchronous control technology. High positioning precision, energy-efficient operation and fast cycle speeds make this series suitable for high-precision, high-throughput bending of sheet metal and other workpieces. Configurations and parameters are oriented to meet demanding industrial requirements.
Available models
- PBM-220/4100
- PBM-220/3100
- PBM-160/4100
- PBM-160/3100

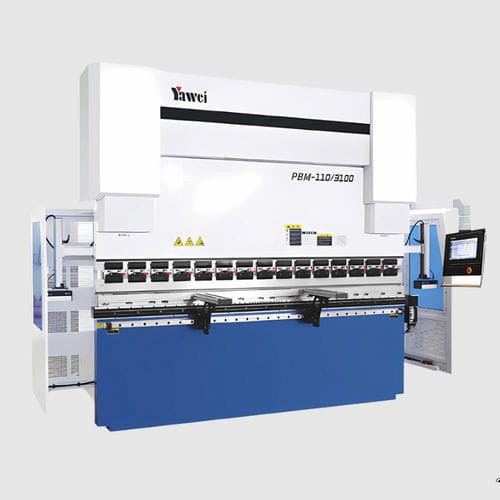

- PBM-110/4100
- PBM-110/3100
Technical Parameters — PBM-220/4100
Nominal force: 2200 kN
Table length A: 4100 mm
Column spacing B: 3600 mm
Throat opening D: 410 mm
Slider stroke C: 265 mm
Mould height E: 600 mm
Slider speed: 220 mm/s, 15 mm/s, 200 mm/s
Motor power: 15*2 kW
Overall dimension L*W*H: 4650*1850*3095 mm
Total weight: 14700 kg
Technical Parameters — PBM-220/3100
Nominal force: 2200 kN
Table length A: 3100 mm
Column spacing B: 2600 mm
Throat opening D: 410 mm
Slider stroke C: 265 mm
Mould height E: 600 mm
Slider speed: 220 mm/s, 15 mm/s, 200 mm/s
Motor power: 15*2 kW
Overall dimension L*W*H: 3650*1850*2995 mm
Total weight: 13000 kg
Technical Parameters — PBM-160/4100
Nominal force: 1600 kN
Table length A: 4100 mm
Column spacing B: 3600 mm
Throat opening D: 410 mm
Slider stroke C: 265 mm
Mould height E: 600 mm
Slider speed: 220 mm/s, 18 mm/s, 220 mm/s
Motor power: 7.5*2 kW
Overall dimension L*W*H: 4630*1600*3025 mm
Total weight: 12400 kg
Technical Parameters — PBM-160/3100
Nominal force: 1600 kN
Table length A: 3100 mm
Column spacing B: 2600 mm
Throat opening D: 410 mm
Slider stroke C: 265 mm
Mould height E: 600 mm
Slider speed: 220 mm/s, 18 mm/s, 220 mm/s
Motor power: 7.5*2 kW
Overall dimension L*W*H: 3630*1600*2985 mm
Total weight: 10500 kg
Technical Parameters — PBM-110/4100
Nominal force: 1100 kN
Table length A: 4100 mm
Column spacing B: 3600 mm
Throat opening D: 410 mm
Slider stroke C: 265 mm
Mould height E: 600 mm
Slider speed: 250 mm/s, 20 mm/s, 220 mm/s
Motor power: 5.5*2 kW
Overall dimension L*W*H: 4610*1550*2985 mm
Total weight: 9700 kg
Technical Parameters — PBM-110/3100
Nominal force: 1100 kN
Table length A: 3100 mm
Column spacing B: 2600 mm
Throat opening D: 410 mm
Slider stroke C: 265 mm
Mould height E: 600 mm
Slider speed: 250 mm/s, 20 mm/s, 220 mm/s
Motor power: 5.5*2 kW
Overall dimension L*W*H: 3610*1550*2935 mm
Total weight: 9000 kg
Features / technical specifications
- Drive system: Oil-electric hybrid drive with pump-controlled synchronous control technology
- Application: High-precision, high-speed bending of various sheet metal workpieces
- Performance: High positioning precision, energy-saving operation and improved cycle efficiency
- Model range covers 1100 kN to 2200 kN and table lengths 3100–4100 mm
- Main parameters: nominal force, table length A, column spacing B, throat opening D, slider stroke C, mould height E, slider speed, motor power, overall dimensions
