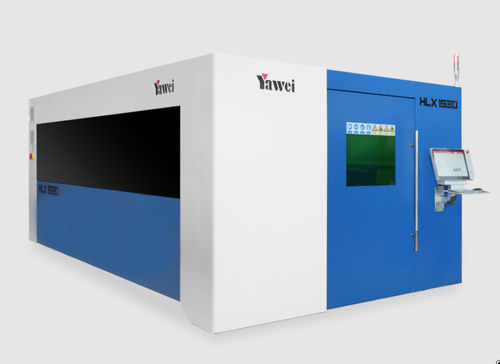

Fiber laser cutting machine HLX seriesfor metalsheet metalwith control software
Add to favorites
Compare this product
Characteristics
- Technology
- fiber laser
- Material
- for metal
- Product handled
- sheet metal
- Control type
- with control software
- Configuration
- large-format, 2D
- Other characteristics
- high-speed, precision, high-efficiency, high-power, for mass production
- X travel
3,070 mm, 4,085 mm, 6,120 mm
(120.87 in, 160.83 in, 240.94 in)- Y travel
1,545 mm, 2,055 mm, 2,565 mm
(60.83 in, 80.91 in, 100.98 in)- Z travel
300 mm, 340 mm
(12 in, 13 in)- Cutting speed
200 m/min
- Laser power
6,000 W, 12,000 W, 20,000 W
- Repeatability
0.02 mm, 0.03 mm
(0.0008 in, 0.0012 in)- Acceleration
19.61 m/s², 24.52 m/s²
(64.34 ft/s², 80.45 ft/s²)- Overall length
9,300 mm, 11,600 mm, 16,000 mm
(366 in, 457 in, 630 in)- Maximum width
5,000 mm, 5,600 mm, 5,800 mm
(197 in, 220 in, 228 in)- Height
2,300 mm
(91 in)- Load capacity
1,000 kg, 1,800 kg, 3,500 kg
(2,204.6 lb, 3,968.3 lb, 7,716.2 lb)
Description
Product Overview
The HLX Ultra-fast Series is a next-generation ultra-speed fiber laser cutting machine designed for high-throughput industrial production and complex profile cutting. It combines upgraded bed & beam construction, enhanced control and transmission systems, and advanced laser processing technology to meet international production standards.
Available Models
HLX-1530 - Product Parameters
Cutting range: 3050×1525 mm
X axis stroke: 3070 mm
Y axis stroke: 1545 mm
Z axis stroke: 300 mm
X-Y maximum trajectory speed: 200 m/min
X/Y maximum acceleration: 2.5 Gm/s²
Positioning accuracy: ±0.03 mm
Repositioning accuracy: ±0.02 mm
Maximum load of worktable: 1000 Kg
Machine layout dimension: 9300×5000×2300 mm
Laser generator power: 6/12/20 kW
HLX-2040 - Product Parameters
Cutting range: 4065×2035 mm
X axis stroke: 4085 mm
Y axis stroke: 2055 mm
Z axis stroke: 300 mm
X-Y maximum trajectory speed: 200 m/min
X/Y maximum acceleration: 2.5 Gm/s²
Positioning accuracy: ±0.03 mm
Repositioning accuracy: ±0.02 mm
Maximum load of worktable: 1800 Kg
Machine layout dimension: 11600×5600×2300 mm
Laser generator power: 6/12/20 kW
HLX-2560 - Product Parameters
Cutting range: 6100×2545 mm
X axis stroke: 6120 mm
Y axis stroke: 2565 mm
Z axis stroke: 340 mm
X-Y maximum trajectory speed: 200 m/min
X/Y maximum acceleration: 2.0 Gm/s²
Positioning accuracy: ±0.03 mm
Repositioning accuracy: ±0.02 mm
Maximum load of worktable: 3500 Kg
Machine layout dimension: 16000×5800×2300 mm
Laser generator power: 6/12/20 kW
Characteristics / Technical Specifications
The HLX Ultra-fast Series is a next-generation ultra-speed fiber laser cutting machine designed for high-throughput industrial production and complex profile cutting. It combines upgraded bed & beam construction, enhanced control and transmission systems, and advanced laser processing technology to meet international production standards.
Available Models
- HLX-1530
- HLX-2040
- HLX-2560
HLX-1530 - Product Parameters
Cutting range: 3050×1525 mm
X axis stroke: 3070 mm
Y axis stroke: 1545 mm
Z axis stroke: 300 mm
X-Y maximum trajectory speed: 200 m/min
X/Y maximum acceleration: 2.5 Gm/s²
Positioning accuracy: ±0.03 mm
Repositioning accuracy: ±0.02 mm
Maximum load of worktable: 1000 Kg
Machine layout dimension: 9300×5000×2300 mm
Laser generator power: 6/12/20 kW
HLX-2040 - Product Parameters
Cutting range: 4065×2035 mm
X axis stroke: 4085 mm
Y axis stroke: 2055 mm
Z axis stroke: 300 mm
X-Y maximum trajectory speed: 200 m/min
X/Y maximum acceleration: 2.5 Gm/s²
Positioning accuracy: ±0.03 mm
Repositioning accuracy: ±0.02 mm
Maximum load of worktable: 1800 Kg
Machine layout dimension: 11600×5600×2300 mm
Laser generator power: 6/12/20 kW
HLX-2560 - Product Parameters
Cutting range: 6100×2545 mm
X axis stroke: 6120 mm
Y axis stroke: 2565 mm
Z axis stroke: 340 mm
X-Y maximum trajectory speed: 200 m/min
X/Y maximum acceleration: 2.0 Gm/s²
Positioning accuracy: ±0.03 mm
Repositioning accuracy: ±0.02 mm
Maximum load of worktable: 3500 Kg
Machine layout dimension: 16000×5800×2300 mm
Laser generator power: 6/12/20 kW
Characteristics / Technical Specifications
- Series name: HLX Ultra-fast Series
- Machine type: Ultra-speed fiber laser cutting machine
- Main features: upgraded bed & beam structure; upgraded control & transmission system; advanced laser processing technology; job list function; remote diagnosis; health protection system; production management center interconnection
- Laser generator power options: 6 kW / 12 kW / 20 kW
- X-Y maximum trajectory speed: 200 m/min (all models)
- Positioning accuracy: ±0.03 mm (all models)
- Repositioning accuracy: ±0.02 mm (all models)
- Acceleration: HLX-1530 & HLX-2040 = 2.5 Gm/s²; HLX-2560 = 2.0 Gm/s²
- Z axis stroke: HLX-1530 / HLX-2040 = 300 mm; HLX-2560 = 340 mm
- Maximum load of worktable: HLX-1530 = 1000 Kg; HLX-2040 = 1800 Kg; HLX-2560 = 3500 Kg
- Machine layout dimensions: HLX-1530 = 9300×5000×2300 mm; HLX-2040 = 11600×5600×2300 mm; HLX-2560 = 16000×5800×2300 mm
