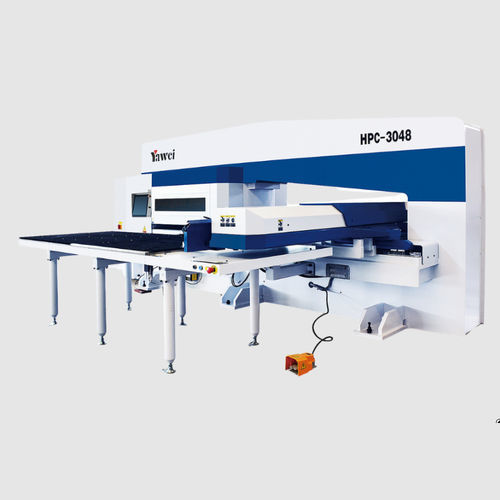

CNC punching machine HPC series

servo-drivenfor metalsheet metal

Product overview

• Main axis controlled by a servo punching system for stability and repeatable performance.
• Full-touch human-machine interface with a powerful CNC control.
• Patented constant-mesh rotating turret to improve positioning repeatability.
• Modern industrial exterior design for improved ergonomics and access.
• Capable of efficient, high-precision roller forming and punching operations.
• Energy-efficient design with low noise and reduced power consumption.

Available models

• HPC-3078
• HPC-3058
• HPC-3048
• HPC-3044
• HPC-2078
• HPC-2058
• HPC-2048
• HPC-2044

Selected model parameters (HPC-3078)
Nominal force: 294 kN
Maximum processing plate size (including one repositioning): 1250×2500 mm
Maximum plate thickness (carbon steel): 6.35 mm
Maximum plate thickness (stainless steel): 4 mm
Maximum single punch diameter: Φ88.9 mm
Number of standard die positions: 38
Punching accuracy: ±0.1 mm
Punching frequency: 2300 cpm
Maximum punching frequency (1 mm step, 6 mm stroke): 750 cpm
Maximum punching frequency (25.4 mm step, 6 mm stroke): 410 cpm
Maximum plate travelling speed: 102 m/min
Turntable speed: 30 rpm
Number of control axes: 5
Air source requirement: 0.6 MPa
Installed/work integrated power: 6.1 kW
Overall dimensions (L×W×H): 5610 mm × 2300 mm × 2260 mm
Weight: 14,000 kg

Notes on other models (summary)
Other variants (HPC-3058, HPC-3048, HPC-3044, HPC-2078, HPC-2058, HPC-2048, HPC-2044) share the same core features: servo-controlled main axis, touchscreen HMI, patented constant-mesh turret, similar punching accuracy (±0.1 mm) and standard die positions (38). Specific maximum plate sizes, punching frequencies, dimensions and weights vary by model (examples on the product page show sizes up to 2000×5000 mm and weights from ~12,500 kg to ~24,500 kg).

Technical features / specifications

• Product family: HPC series (Servo CNC Turret Punch)
• Control: Servo punching main axis; full-touch HMI; CNC system
• Nominal force (example HPC-3078): 294 kN
• Max plate size (HPC-3078): 1250×2500 mm (other models up to 2000×5000 mm)
• Max carbon steel thickness: 6.35 mm
• Max stainless steel thickness: 4 mm
• Maximum single punch diameter: Φ88.9 mm
• Standard die positions: 38
• Punching accuracy: ±0.1 mm
• Punching frequency (HPC-3078): up to 2300 cpm
• Max plate travelling speed: 102 m/min
• Turntable speed: 30 rpm
• Control axes: 5
• Air source: 0.6 MPa
• Installed power: 6.1 kW
• Typical dimensions (HPC-3078 L×W×H): 5610×2300×2260 mm
• Typical weight (HPC-3078): 14,000 kg (other variants ~12,500–24,500 kg)
