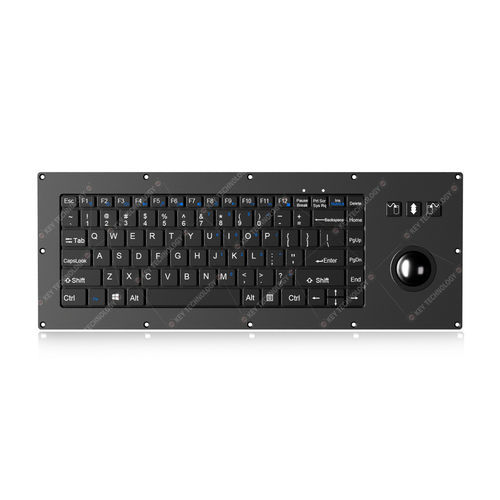

Panel-mount keyboard K-TEK-V405-38-MTB-FN-SC-BT
scissor switch86-keywith 3 mouse keys

Panel-mount keyboard - K-TEK-V405-38-MTB-FN-SC-BT - Key Technology Rugged System Limited - scissor switch / 86-key / with 3 mouse keys
Panel-mount keyboard - K-TEK-V405-38-MTB-FN-SC-BT - Key Technology Rugged System Limited - scissor switch / 86-key / with 3 mouse keys
Panel-mount keyboard - K-TEK-V405-38-MTB-FN-SC-BT - Key Technology Rugged System Limited - scissor switch / 86-key / with 3 mouse keys - image - 2
Panel-mount keyboard - K-TEK-V405-38-MTB-FN-SC-BT - Key Technology Rugged System Limited - scissor switch / 86-key / with 3 mouse keys - image - 3
Panel-mount keyboard - K-TEK-V405-38-MTB-FN-SC-BT - Key Technology Rugged System Limited - scissor switch / 86-key / with 3 mouse keys - image - 4
Add to favorites
Compare this product
Go to the Key Technology Rugged System Limited website for more information

Characteristics

Mounting
panel-mount
Key type
scissor switch
Number of keys
with 3 mouse keys, 86-key
Domain
industrial, outdoor, for public access kiosks and internet terminals, for mining applications, health and environmental safety, for self-service information kiosk, maritime industry, for aerospace applications, for the transportation industry, for aeronautical applications
Connection type
USB
Structure
QWERTY, AZERTY, silicone-key
Material
silicone
Protection level
standard, IEC, IP54, EMC
Other characteristics
compact, custom, long-travel, backlit, integrated

Description

Key Travel：1.20mm±0.20mm MECHANICAL DATA Key travel - 1.20mm±0.20mm Actuation Force - 0.6N±0.2N (pressure point) Switch life - more than 5 million of operations G.W. - 2.0KGs ELECTRICAL DATA Supply Voltage - DC +5V±5% Current Rating - ≈30mA EMC Standard - EN 55032:2015 EN 55035:2017 Lifespan - > 5 years OS - All Windows, Linux, Unix, Mac OSX, Vxworks, Android ENVIRONMENTAL ADAPTABILITY Operating temperature - 0℃ to + 45℃ Storage temperature - -10℃ to + 55℃ Operating RH - 3%~95% Atmospheric pressure - 60-106Kpa Saline mist - 96 hours, IEC 60512-6 Damp heat test at +40℃ - 21 days, IEC 60512-6 Dry heat test at +85℃ - 10 days, IEC 60512-6 RELIABILITY RoHS, CE, FCC MTBF - >20000H MTTR - <30min
