Panel-mount keyboard K-TEK-V271-108-FN-SC-DM
scissor switch78-keyfor the transportation industry

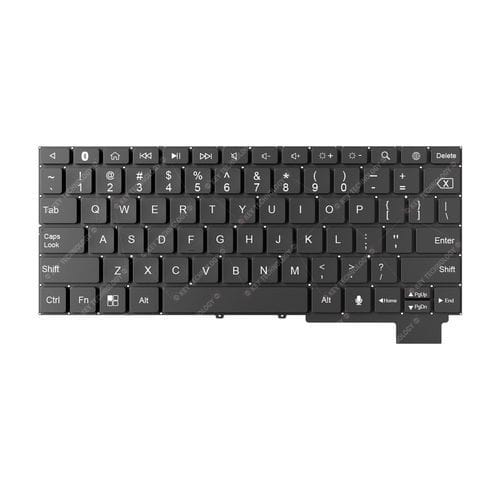

Panel-mount keyboard - K-TEK-V271-108-FN-SC-DM - Key Technology Rugged System Limited - scissor switch / 78-key / for the transportation industry
Panel-mount keyboard - K-TEK-V271-108-FN-SC-DM - Key Technology Rugged System Limited - scissor switch / 78-key / for the transportation industry
Panel-mount keyboard - K-TEK-V271-108-FN-SC-DM - Key Technology Rugged System Limited - scissor switch / 78-key / for the transportation industry - image - 2
Panel-mount keyboard - K-TEK-V271-108-FN-SC-DM - Key Technology Rugged System Limited - scissor switch / 78-key / for the transportation industry - image - 3
Panel-mount keyboard - K-TEK-V271-108-FN-SC-DM - Key Technology Rugged System Limited - scissor switch / 78-key / for the transportation industry - image - 4
Add to favorites
Compare this product
Go to the Key Technology Rugged System Limited website for more information

Characteristics

Mounting
panel-mount
Key type
scissor switch
Number of keys
78-key
Domain
industrial, outdoor, for public access kiosks and internet terminals, for mining applications, for automatic distributors, for self-service information kiosk, for marine applications, for the navy, for the aerospace industry, for the transportation industry
Connection type
Dot matrix
Material
silicone
Protection level
waterproof, rugged, vandal-proof, scratch-proof, standard, weatherproof, IEC, IP54, MIL-STD 810F, EMC
Other characteristics
compact, custom, long-travel, backlit, integrated

Description

Key Travel：1.20mm±0.20mm MECHANICAL DATA Key travel - 1.20mm±0.20mm Actuation Force - 0.6N±0.2N (pressure point ) Switch life - more than 5 million of operations ELECTRICAL DATA Supply Voltage - DC +5V±5% Current Rating - ≈30mA EMC Standard - EN 55032:2015 EN 55035:2017 Lifespan - > 5 years Interface - matrix output OS - All Windows, Linux, Unix, Mac OSX, Vxworks, Android Operating temperature - 0℃ to +45℃ Storage temperature - -10℃ to +55℃ Operating RH - 3%~95% Atmospheric pressure - 60-106Kpa Saline mist - 96 hours, IEC 60512-6 Damp heat test at +40℃ - 21 days, IEC 60512-6 Dry heat test at +85℃ - 10 days, IEC 60512-6 RELIABILITY RoHS, CE, FCC Key Lifespan - >5 million actuations MTBF - >20000H MTTR - <30min APPLICATION - Portable rugged laptop/notebook etc.
