Panel-mount keyboard K-TEK-V315-FN-BL-FC-PR-AL-DWP+TP85-DML+2K-FC
scissor switchwith 2 mouse keyswith Fn key

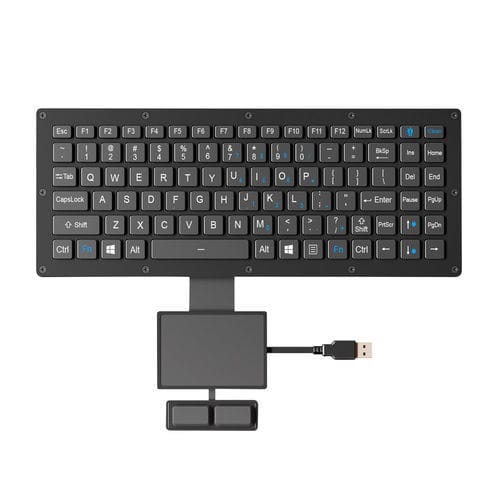

Panel-mount keyboard - K-TEK-V315-FN-BL-FC-PR-AL-DWP+TP85-DML+2K-FC - Key Technology Rugged System Limited - scissor switch / with 2 mouse keys / with Fn key
Panel-mount keyboard - K-TEK-V315-FN-BL-FC-PR-AL-DWP+TP85-DML+2K-FC - Key Technology Rugged System Limited - scissor switch / with 2 mouse keys / with Fn key
Panel-mount keyboard - K-TEK-V315-FN-BL-FC-PR-AL-DWP+TP85-DML+2K-FC - Key Technology Rugged System Limited - scissor switch / with 2 mouse keys / with Fn key - image - 2
Panel-mount keyboard - K-TEK-V315-FN-BL-FC-PR-AL-DWP+TP85-DML+2K-FC - Key Technology Rugged System Limited - scissor switch / with 2 mouse keys / with Fn key - image - 3
Panel-mount keyboard - K-TEK-V315-FN-BL-FC-PR-AL-DWP+TP85-DML+2K-FC - Key Technology Rugged System Limited - scissor switch / with 2 mouse keys / with Fn key - image - 4
Add to favorites
Compare this product
Go to the Key Technology Rugged System Limited website for more information

Characteristics

Mounting
panel-mount
Key type
scissor switch
Number of keys
with Fn key, with 2 mouse keys, 92-key
Pointing device
with mouse
Domain
for control panels, marine, for the automotive industry, for the aerospace industry
Connection type
USB
Protection level
rugged, for harsh environments, IP67
Other characteristics
backlit, short-travel

Description

Product overview
  • Category: DWP scissor-switch keyboard
  • Model: K-TEK-V315-FN-BL-FC-SC-AL-DWP+TP85-DML+2K-FC
  • Key count: 92 keys + 2 mouse buttons (page also mentions 80 keys)
  • Interface: USB
  • Front panel protection: IP67
  • Key travel: 1.20mm ±0.10mm; actuation force: 0.8N ±0.2N


Mechanical data
  • Switch type: rugged scissor switch technology
  • Key life span: >5,000,000 operations
  • Key travel: 1.20mm ±0.10mm; actuation force: 0.8N ±0.2N
  • Layout options: 92-key with integrated 2 mouse buttons (conflicting listing of 80 keys on page)


Electrical data
  • Supply voltage: DC +5V ±5%
  • Current: ≤30mA (backlight off); ≤300mA (backlight on)
  • Interface: USB; compatible OS: Windows, Linux, Unix, Mac OSX, VxWorks, Android
  • EMC standards: EN 55032:2015; EN 55035:2017
  • Electrical lifespan: >5 years


Environmental adaptability and tests
  • Operating temperature: -40℃ to +60℃; storage: -50℃ to +70℃
  • Humidity test: 30℃–60℃, 95% RH, 10 cycles (240h)
  • Vibration: 0–5.1Hz, displacement 1mm; shock: peak 40g, 11ms pulses, 18 impacts (triaxial)
  • Temperature shock: -50℃/+70℃ cycles (3 cycles, 12h)
  • Fungus test: 28 days (672h) with Aspergillus/Penicillium strains
  • Salt spray: NaCl 5% ±1, pH 6.6, chamber 35℃, cycles totalling 96h
  • Rain and blowing rain: wind ≥18 m/s, 3h test
  • Dust and dust-blowing tests with extended multi-stage protocols
  • Transport drop: samples ≤45.4kg, drop height 122cm, 26 drops (each face/edge/corner)


Reliability and certifications
  • Certifications: RoHS compliant, CE, FCC
  • Standards/robustness: MIL-STD-810H (temp, pressure, humidity, vibration, shock, salt mist, dust, fungus, rain, solar radiation)
  • Protection level: IP67 (front panel)
  • Lifespan: >5 years; MTBF >20,000 h; MTTR <30 min


Applications
  • Intended for vehicle, aerospace, naval/maritime, radar and display consoles, rugged portable laptops, UAV ground stations and other mission-critical environments


Notes / additional information
  • Page lists two key-count variants (92 keys and 80 keys) — verify required layout when ordering
  • Backlight current reported up to 300mA when enabled


Technical specifications
  • Model family: K-TEK-V315-FN-BL-FC-SC-AL-DWP+TP85-DML+2K-FC
  • Category: DWP scissor-switch keyboard
  • Keys: 92 + 2 mouse buttons (alternate listing: 80 + 2)
  • Key travel: 1.20mm ±0.10mm; actuation force: 0.8N ±0.2N
  • Key life span: >5,000,000 operations
  • Interface: USB; supply: DC +5V ±5%
  • Current: ≤30mA (backlight off); ≤300mA (backlight on)
  • Front panel protection: IP67
  • Operating temp: -40℃ to +60℃; storage: -50℃ to +70℃
  • Certifications: RoHS, CE, FCC, MIL-STD-810H
  • MTBF >20,000 h; MTTR <30 min
