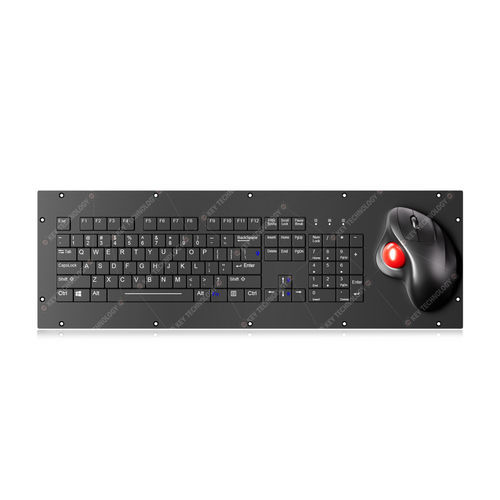

Panel-mount keyboard K-TEK-V530-OTB-KP-FN-SC-BL-BT
scissor switch104-keywith trackball

Panel-mount keyboard - K-TEK-V530-OTB-KP-FN-SC-BL-BT - Key Technology Rugged System Limited - scissor switch / 104-key / with trackball
Panel-mount keyboard - K-TEK-V530-OTB-KP-FN-SC-BL-BT - Key Technology Rugged System Limited - scissor switch / 104-key / with trackball
Panel-mount keyboard - K-TEK-V530-OTB-KP-FN-SC-BL-BT - Key Technology Rugged System Limited - scissor switch / 104-key / with trackball - image - 2
Panel-mount keyboard - K-TEK-V530-OTB-KP-FN-SC-BL-BT - Key Technology Rugged System Limited - scissor switch / 104-key / with trackball - image - 3
Panel-mount keyboard - K-TEK-V530-OTB-KP-FN-SC-BL-BT - Key Technology Rugged System Limited - scissor switch / 104-key / with trackball - image - 4
Add to favorites
Compare this product
Go to the Key Technology Rugged System Limited website for more information

Characteristics

Mounting
panel-mount
Key type
scissor switch
Number of keys
104-key
Pointing device
with trackball, with mouse
Domain
industrial, outdoor, for public access kiosks and internet terminals, for self-service information kiosk, maritime industry, for aerospace applications, for nuclear applications
Connection type
USB, PS2
Structure
QWERTY, AZERTY, silicone-key, ultra-slim
Material
silicone rubber
Protection level
rugged, IP54
Other characteristics
compact, custom, long-travel, backlit, integrated

Description

Key Travel：1.20mm±0.20mm MECHANICAL DATA Key Travel - 2.0mm ± 0.2mm Actuation Force - 0.5N - 0.8N Dimension - 530.0mm x 172.0mm (front panel) ELECTRICAL DATA Supply Voltage - DC +5V±5% Current Rating - 50mA when backlight is off, 300mA with backlight on Lifespan - > 5 years OS - All Windows, Linux Unix, Mac OSX, Vxworks, Android, QNX 6.3.2 operating systems ENVIRONMENTAL ADAPTABILITY Operating Temperature - 0℃ to + 45℃ Storage Temperature - -10℃ to + 55℃ Operating RH - 3% ~ 95% RELIABILITY RoHS Compliant, CE and FCC, ESD Key Lifespan - >5 million actuations MTBF - >20000H MTTR - <30min
