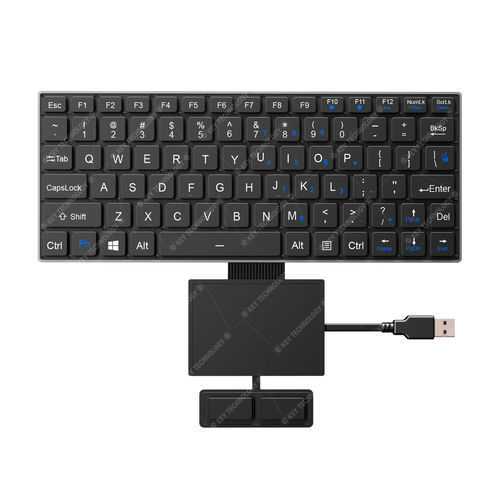

Panel-mount keyboard K-TEK-V268-FN-BL-FC-SC-DWP+TP85-DML+2K-FC

scissor switchwith 2 mouse keys80-key

Key Travel：1.20mm±0.10mm MECHANICAL DATA Key travel 1.20mm±0.10mm Key life span more than 5 million of operations Actuation Force 0.8N±0.2N ELECTRICAL DATA Supply Voltage DC +5V±5% Current Rating ≤30mA when backlight is off, ≤300mA with backlight on EMC Standard EN 55032:2015 EN 55035:2017 Lifespan > 5 years OS All Windows, Linux, Unix, Mac OSX, Vxworks, Android ENVIRONMENTAL ADAPTABILITY Operating temperature -40℃ to + 60℃ Storage temperature -50℃ to + 70℃ Humidity test 1. Test temperature: 30℃~60℃, 2. Test humidity: 95%RH, 3. Test period: 24h as a cycle, 10 cycles, total 240h Atmospheric pressure 57kPa~106kPa Vibration test 0~5.1Hz, displacement 1mm Shock test 1. Pulse waveform: post-peak sawtooth wave 2. Peak acceleration: 40g 3. Pulse duration: 11ms 4. Test period: X,Y, Z triaxial, 3 times impact to each axial front and back, a total of 18 times Temperature shock test 1. Test temperature: -50℃~70℃ 2. Test period: -50℃ for 2h, 70℃ for 2h, 3 cycles, a total of 12h Fungus test 1. Test temperature: (30±1) ℃ 2. Relative humidity: (95±5) %RH 3. Test strains: Aspergillus flavus, Aspergillus variegatus, Penicillium cordylus, mucocellus globularis, Aspergillus Niger 4. Test period: 28 days (672 hours) Salt spray test 1. Place the sample into the Salt Spray Corrosion Test Chamber, temperature inside the chamber is 35 ℃; Spray the sample with a NaCl test solution with a concentration of 5 ± 1% and a PH value of 6.6 for 24h at a pressure of 96kPa; Test duration is 24 h. 2. After 24h of spray, dry and store the sample for 24h in an environment with temperature of 23 ℃ and humidity of 50%;
