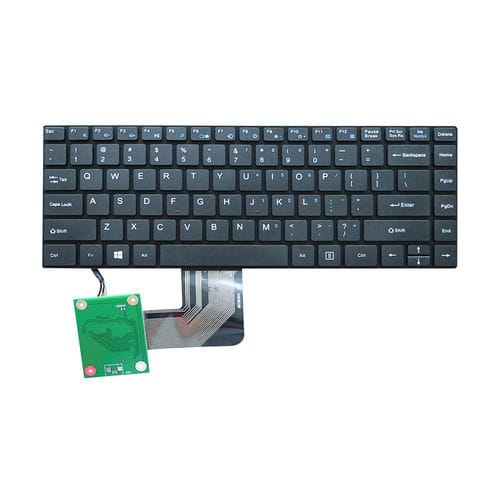

Panel-mount keyboard K-TEK-V291-FN-UT-SC
scissor switch86-keyUSB

Panel-mount keyboard - K-TEK-V291-FN-UT-SC - Key Technology Rugged System Limited - scissor switch / 86-key / USB
Panel-mount keyboard - K-TEK-V291-FN-UT-SC - Key Technology Rugged System Limited - scissor switch / 86-key / USB
Panel-mount keyboard - K-TEK-V291-FN-UT-SC - Key Technology Rugged System Limited - scissor switch / 86-key / USB - image - 2
Add to favorites
Compare this product
Go to the Key Technology Rugged System Limited website for more information

Characteristics

Mounting
panel-mount
Key type
scissor switch
Number of keys
86-key
Connection type
USB
Protection level
rugged, standard, IEC, IP54, EMC

Description

Category: Scissors switch keyboard - Key Number: 86 keys - Key Travel: 1.20mm±0.20mm - Interface: USB - Key Switch: Scissors switch - Protection Level: IP54 MECHANICAL DATA - Keys: 86 keys - Key switch: Scissors switch technology - Key travel: 1.20mm±0.20mm - Actuation Force: 0.6N±0.2N (pressure point) - Switch life: more than 5 million operations - G.W.: 0.30KGs ELECTRICAL DATA - Supply Voltage: DC +5V±5% - Current Rating: 30mA - EMC Standard: EN 55032:2015, EN 55035:2017 - Lifespan: > 5 years - Interface: USB/matrix output - OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android ENVIRONMENTAL ADAPTABILITY - Operating temperature: 0℃ to +45℃ - Storage temperature: -10℃ to +55℃ - Operating RH: 3%~95% - Atmospheric pressure: 60-106Kpa - Saline mist: 96 hours, IEC 60512-6 - Damp heat test at +40℃: 21 days, IEC 60512-6 - Dry heat test at +85℃: 10 days, IEC 60512-6 RELIABILITY - RoHS, CE, FCC - Protection Level: IP54 - Key Lifespan: >5 million actuations - MTBF: >20000H - MTTR: <30min APPLICATION - Portable rugged laptop etc.

Catalogs

No catalogs are available for this product.

See all of Key Technology Rugged System Limited‘s catalogs

Exhibitions

Meet this supplier at the following exhibition(s):

ELECTRONICA 2026
ELECTRONICA 2026

10-13 Nov 2026 Munich (Germany) Hall Hall B2 - Stand 269/1

  • More information
    Hannover Messe 2027
    Hannover Messe 2027

    5-08 Apr 2027 Hannover (Germany)

  • More information
    Go to the Key Technology Rugged System Limited website for more information

    Other Key Technology Rugged System Limited products

    IP67 Scissor Switch Keyboard
