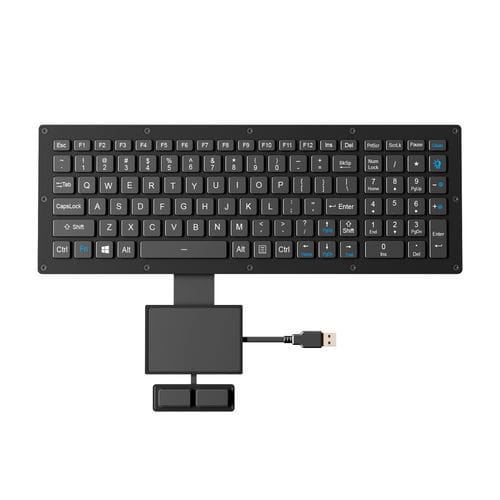

Panel-mount keyboard K-TEK-V356KP-FN-BL-FC-PR-AL-DWP+TP85-DML+2K-FC

scissor switchwith 2 mouse keys102-key

Key features
102 keys + 2 mouse buttons; rugged scissor-switch technology; front-panel IP67 protection; USB interface; MIL-STD-810H tested for wide temperature range, shock, vibration, salt spray, dust and fungus. Key travel 1.20mm ±0.10mm; key life >5 million operations; operating temperature -40°C to +60°C; MTBF >20000H.

Mechanical data

• Key number: 102 keys + 2 mouse buttons
• Key switch: rugged scissor-switch technology
• Key travel: 1.20mm ±0.10mm
• Key lifespan: >5 million operations
• Actuation force: 0.8N ±0.2N

Electrical data

• Supply voltage: DC +5V ±5%
• Current rating: ≤30mA (backlight off), ≤300mA (backlight on)
• Interface: USB
• EMC standard: EN 55032:2015, EN 55035:2017
• Supported OS: Windows, Linux, Unix, Mac OSX, VxWorks, Android
• Lifespan (product): >5 years

Environmental adaptability

• Operating temperature: -40°C to +60°C
• Storage temperature: -50°C to +70°C
• Humidity test: cyclic 95%RH at 30–60°C, 10 cycles (240h)
• Atmospheric pressure: 57kPa–106kPa
• Vibration: 0–5.1Hz, displacement 1mm
• Shock: peak 40g, 11ms pulse, 18 impacts (triaxial)
• Temperature shock: -50°C/70°C cycles (total 12h)
• Fungus resistance: 28 days (672h) test with common strains
• Salt spray: NaCl 5% ±1% cycles, total 96h
• Rain test: rainfall and blowing rain at ≥18 m/s for 3h
• Dust test: dust blowing cycles at 23°C/60°C
• Transport drop: 122cm drops on surfaces, edges and corners (26 drops), for packages ≤45.4kg

Reliability & certifications

• Protection level (front panel): IP67
• Standards: RoHS, CE, FCC
• MIL-STD-810H compliance (temperature, humidity, vibration, shock, salt fog, dust, fungus, solar radiation, etc.)
• Lifespan: >5 years; MTBF: >20000H; MTTR: <30 min

Applications

• Vehicle consoles
• Aerospace systems and ground stations
• Naval and maritime consoles
• Radar and display consoles
• Portable rugged laptops and UAV ground stations

Technical specifications

• Category: DWP Scissors Switch Keyboard
• Key Number: 102 keys + 2 mouse buttons
• Key switch technology: Rugged scissor switch
• Key travel: 1.20mm ±0.10mm
• Key life span: >5 million operations
• Actuation force: 0.8N ±0.2N
• Supply voltage: DC +5V ±5%
• Current rating: ≤30mA (backlight off), ≤300mA (backlight on)
• EMC: EN 55032:2015, EN 55035:2017
• Supported OS: Windows, Linux, Unix, Mac OSX, VxWorks, Android
• Operating temperature: -40°C to +60°C
• Storage temperature: -50°C to +70°C
• Protection level (front panel): IP67
• Certifications: RoHS, CE, FCC; MIL-STD-810H compliance
• MTBF: >20000H; MTTR: <30 min
