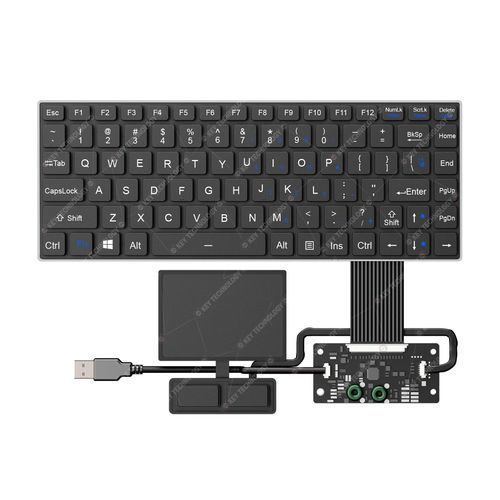

Panel-mount keyboard K-TEK-V285-FN-BL-FC-SC-ANA-151B-DWP+TP85+2K

scissor switch86-keywith 2 mouse keys

Category: DWP Scissors Switch Keyboard - Key Number: 86 keys + external left and right mouse buttons - Key Travel: 1.20mm±0.10mm - Interface: Dot matrix, USB, PS2 optional - Key Switch: Rugged scissor switch technology - Protection Level: IP67 (front panel) MECHANICAL DATA - Key: 86 keys + external left and right mouse buttons - Key switch: Rugged scissor switch technology - Key travel: 1.20mm±0.10mm - Key life span: more than 5 million operations - Actuation Force: 0.8N±0.2N ELECTRICAL DATA - Supply Voltage: DC +5V±5% - Current Rating: ≤30mA when backlight is off, ≤300mA with backlight on - EMC Standard: EN 55032:2015, EN 55035:2017 - Lifespan: > 5 years - Interface: Dot matrix, USB, PS2 optional - OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android MIL-STD-461G (EMC, EMI, EMS, ESD): 1. CE101 25Hz - 10kHz Conducted Emissions, Audio Frequency Currents, Power leads 2. CE102 10kHz -10MHz Conducted Emissions, Radio Frequency Potentials, Power leads 3. CS101 25Hz - 150kHz Conducted Susceptibility, Power Leads 4. CS106 Conducted Susceptibility, Transients, Power Leads 5. CS112 Electrostatic Discharge Susceptibility 6. CS114 4kHz -400MHz Conducted Susceptibility, Bulk Cable injection 7. CS115 Conducted Susceptibility, Bulk Cable injection, Impulse Excitation 8. CS116 10kHz - 100MHz Conducted Susceptibility, Damped Sinusoidal Transients, Cables and Power Leads 9. RE101 25Hz -100kHz Radiated Emissions, Magnetic Field 10. RE102 10kHz - 18GHz Radiated Emissions, Electric Field 11. RS101 25HZ - 100kHz Radiated Susceptibility, Magnetic Field 12. RS103 10kHz - 40GHz Radiated Susceptibility, Electric Field MIL-STD-810H (high and low wide temperature, low pressure, humidity, vibration, shock, temperature shock, drop rain, dust, salt mist, fungus, solar radiation etc.) ENVIRONMENTAL ADAPTABILITY - Operating temperature: -40℃ to + 60℃ - Storage temperature: -50℃ to + 70℃ - Humidity test: 1. Test temperature: 30℃~60℃, 2. Test humidity: 95%RH, 3. Test period: 24h as a cycle, 10 cycles, total 240h - Atmospheric pressure: 57kPa~106kPa - Vibration test: 0~5.1Hz, displacement 1mm - Shock test: 1. Pulse waveform: post-peak sawtooth wave, 2. Peak acceleration: 40g, 3. Pulse duration: 11ms, 4. Test period: X,Y, Z triaxial, 3 times impact to each axial front and back, a total of 18 times - Temperature shock test: 1. Test temperature: -50℃~70℃, 2. Test period: -50℃ for 2h, 70℃ for 2h, 3 cycles, a total of 12h - Fungus test: 1. Test temperature: (30±1) ℃, 2. Relative humidity: (95±5) %RH, 3. Test strains: Aspergillus flavus, Aspergillus variegatus, Penicillium cordylus, mucocellus globularis, Aspergillus Niger, 4. Test period: 28 days (672 hours) - Salt spray test: 1. Place the sample into the Salt Spray Corrosion Test Chamber, temperature inside the chamber is 35 ℃; Spray the sample with a NaCl test solution with a concentration of 5 ± 1% and a PH value of 6.6 for 24h at a pressure of 96kPa; Test duration is 24 h. 2. After 24h of spray, dry and store the sample for 24h in an environment with temperature of 23 ℃ and humidity of 50%; 3. Steps 1-2 as one cycle, test for 2 cycles, total 96 h. 4. After the test, exhaust the fog for 10 min, check the sample after cleaning it with flowing water under standard atmospheric conditions. - Rain test: 1. Test procedure: Procedure - rainfall and blowing rain, 2. Test direction: keyboard surface, 3. Wind velocity: no less than 18 m/s, 4. Test duration: 3h - Dust test: 1. Test procedure: Procedure - Dust Blowing, 2. Dust content: 10.6g/m³±7g/m³, 3. Firstly conduct dust blowing for 6h under 23°C, then adjust the temperature to 60°C and stabilize for 1h, and then re-conduct dust blowing for 6h. - Transport package drop test: 1. Test procedure: Transport Drop Test, 2. Sample state: Weight≤45.4kg, Maximum Size5 years - MTBF: >20000H - MTTR: <30min APPLICATION - Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc.
