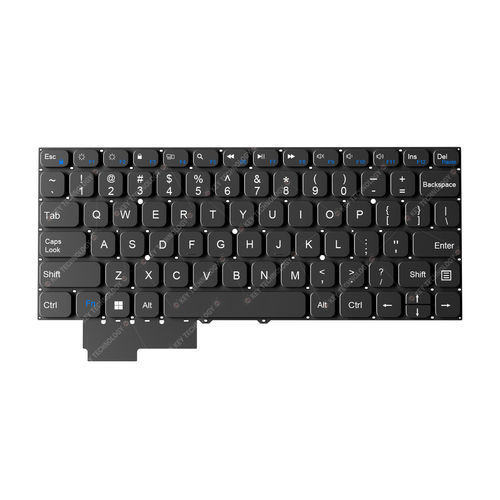

Panel-mount keyboard K-TEK-V249-102-FN-SC-DM
scissor switch79-keyfor the transportation industry

Panel-mount keyboard - K-TEK-V249-102-FN-SC-DM - Key Technology Rugged System Limited - scissor switch / 79-key / for the transportation industry
Panel-mount keyboard - K-TEK-V249-102-FN-SC-DM - Key Technology Rugged System Limited - scissor switch / 79-key / for the transportation industry
Panel-mount keyboard - K-TEK-V249-102-FN-SC-DM - Key Technology Rugged System Limited - scissor switch / 79-key / for the transportation industry - image - 2
Panel-mount keyboard - K-TEK-V249-102-FN-SC-DM - Key Technology Rugged System Limited - scissor switch / 79-key / for the transportation industry - image - 3
Panel-mount keyboard - K-TEK-V249-102-FN-SC-DM - Key Technology Rugged System Limited - scissor switch / 79-key / for the transportation industry - image - 4
Add to favorites
Compare this product
Go to the Key Technology Rugged System Limited website for more information

Characteristics

Mounting
panel-mount
Key type
scissor switch
Number of keys
79-key
Domain
industrial, for public access kiosks and internet terminals, for mining applications, for self-service information kiosk, for marine applications, for the navy, for pharmaceutical applications, for the aerospace industry, for the transportation industry, for aeronautical applications
Connection type
Dot matrix
Structure
QWERTY, AZERTY, silicone-key, ultra-slim
Material
silicone
Protection level
ultra-rugged, waterproof, vandal-proof, harsh environments, scratch-proof, standard, weatherproof, IEC, IP54, MIL-STD 810F, EMC
Other characteristics
compact, custom, long-travel, backlit, integrated

Description

Key Travel：1.20mm±0.20mm MECHANICAL DATA Key travel - 1.20mm±0.20mm Actuation Force - 0.6N±0.2N (pressure point ) Switch life - more than 5 million of operations ELECTRICAL DATA Supply Voltage - DC +5V±5% Current Rating - ≈30mA EMC Standard - EN 55032:2015 EN 55035:2017 Lifespan - > 5 years Interface - matrix output Operating temperature - 0℃ to +45℃ Storage temperature - -10℃ to +55℃ Operating RH - 3%~95% Atmospheric pressure - 60-106Kpa Saline mist - 96 hours, IEC 60512-6 Damp heat test at +40℃ - 21 days, IEC 60512-6 Dry heat test at +85℃ - 10 days, IEC 60512-6 RELIABILITY RoHS, CE, FCC Key Lifespan - >5 million actuations MTBF - >20000H MTTR - <30min APPLICATION - Portable rugged laptop/notebook etc.
