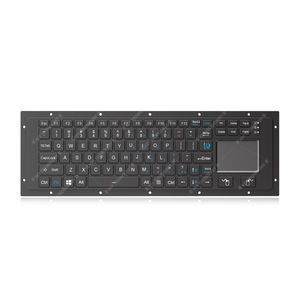

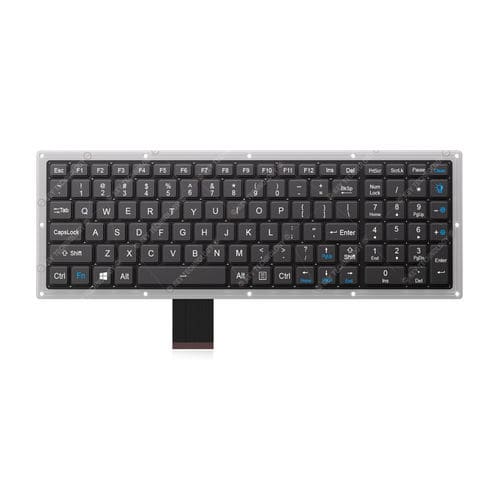

Panel-mount keyboard K-TEK-V356KP-FN-BL-FC-PR-DM-DWP

scissor switch102-keyfor the automotive industry

Overview

• Category: DWP scissor-switch keyboard
• Keys: 102
• Key travel: 1.20mm ±0.10mm
• Interface: USB (dot matrix)
• Key switch: scissor-switch technology
• Protection level: IP67 (front panel)

Mechanical Data
Key quantity: 102
Key switch: scissor-switch technology
Key travel: 1.20mm ±0.10mm
Key life span: > 5 million operations
Actuation force: 0.8 N ±0.2 N

Electrical Data
Supply voltage: DC +5V ±5%
Current rating: ≤30 mA (backlight off), ≤300 mA (backlight on)
EMC standards: EN 55032:2015, EN 55035:2017
Lifespan (electrical): > 5 years
Interface: Dot matrix USB
OS compatibility: Windows, Linux, Unix, Mac OS X, VxWorks, Android

Environmental Adaptability
Operating temperature: -40 ℃ to +65 ℃
Storage temperature: -50 ℃ to +75 ℃
Humidity test: 30 ℃–60 ℃; 95% RH; 24 h cycle × 10 cycles (240 h total)
Atmospheric pressure: 57 kPa – 106 kPa
Vibration test: 0–5.1 Hz, displacement 1 mm
Shock test: peak acceleration 40 g; pulse 11 ms; triaxial impacts (X, Y, Z) front/back, 3 impacts each (18 total)
Temperature shock: -50 ℃ / +70 ℃; cycles: -50 ℃ 2 h, +70 ℃ 2 h, 3 cycles (12 h total)
Fungus test: 30 ±1 ℃; 95 ±5% RH; Aspergillus and Penicillium species; 28 days (672 h)
Salt spray: NaCl 5 ±1% at 35 ℃; 24 h per cycle; 2 cycles (96 h total) with prescribed dry/store steps
Rain test: rainfall + blowing rain on keyboard surface; wind ≥ 18 m/s; duration 3 h
Dust test: dust blowing procedures with specified concentrations and sequences
Transport drop test: sample ≤ 45.4 kg, max size < 91.0 cm; drop height 122 cm; 26 drops covering faces, edges and corners

Reliability
Compliances: RoHS, CE, FCC
Standard: MIL-STD-810H (temperature extremes, low pressure, humidity, vibration, shock, temperature shock, rain, salt fog, dust, fungus, solar radiation, etc.)
Protection level: IP67 (front panel)
Lifespan: > 5 years
MTBF: > 20000 h
MTTR: < 30 min

Application
Designed for vehicle consoles, aerospace systems, naval and maritime installations, radar and display consoles, portable rugged laptops, UAV ground stations and similar industrial/defense environments

Technical specifications

• Model name: K-TEK-V356KP-FN-BL-FC-PR-DM-DWP
• Keys: 102
• Key travel: 1.20 mm ±0.10 mm
• Actuation force: 0.8 N ±0.2 N
• Key life span: >5 million operations
• Supply voltage: DC +5V ±5%
• Current rating: ≤30 mA (backlight off), ≤300 mA (backlight on)
• EMC: EN 55032:2015, EN 55035:2017
• Interface: USB (dot matrix)
• OS compatibility: Windows, Linux, Unix, Mac OS X, VxWorks, Android
• Operating temperature: -40 ℃ to +65 ℃
• Storage temperature: -50 ℃ to +75 ℃
• Protection: IP67 front panel
• Standards: RoHS, CE, FCC, MIL-STD-810H
• MTBF: >20000 h
• MTTR: <30 min
