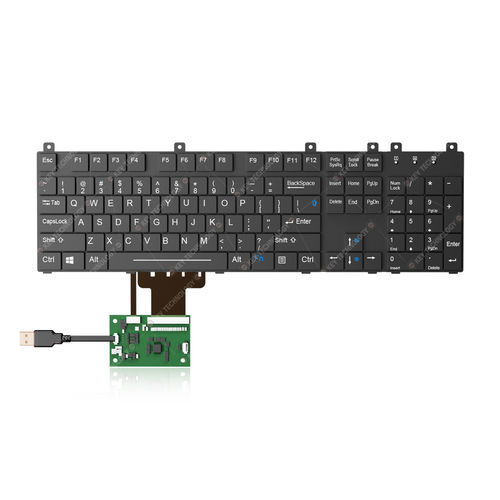

Panel-mount keyboard K-TEK-V385KP-FN-SC-BL
scissor switch104-keyfor nuclear applications

Panel-mount keyboard - K-TEK-V385KP-FN-SC-BL - Key Technology Rugged System Limited - scissor switch / 104-key / for nuclear applications
Panel-mount keyboard - K-TEK-V385KP-FN-SC-BL - Key Technology Rugged System Limited - scissor switch / 104-key / for nuclear applications
Panel-mount keyboard - K-TEK-V385KP-FN-SC-BL - Key Technology Rugged System Limited - scissor switch / 104-key / for nuclear applications - image - 2
Panel-mount keyboard - K-TEK-V385KP-FN-SC-BL - Key Technology Rugged System Limited - scissor switch / 104-key / for nuclear applications - image - 3
Panel-mount keyboard - K-TEK-V385KP-FN-SC-BL - Key Technology Rugged System Limited - scissor switch / 104-key / for nuclear applications - image - 4
Add to favorites
Compare this product
Go to the Key Technology Rugged System Limited website for more information

Characteristics

Mounting
panel-mount
Key type
scissor switch
Number of keys
104-key
Domain
industrial, maritime industry, for the aerospace industry, for nuclear applications
Connection type
USB, PS2, Dot matrix
Protection level
rugged, standard, IP54, EMC
Other characteristics
compact, backlit

Description

Category: Scissors switch keyboard - Key Number: 104 keys - Key Travel: 2.0mm ± 0.2mm - Interface: USB (Dot matrix/USB/PS2 optional) - Key Switch: Scissors switch technology - Protection Level: IP54 static - Actuation Force: 0.5N - 0.8N - Dimension: 385.0mm x 109.0mm (L x W) - G.W.: 1.0KGs - Supply Voltage: DC +5V±5% - Current Rating: 50mA (backlight off), 300mA (backlight on) - EMC standard: EN 55032:2015; EN 55035:2017 - Lifespan: > 5 years - OS Compatibility: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, QNX 6.3.2 - Operating Temperature: 0℃ to +45℃ - Storage Temperature: -10℃ to +55℃ - Operating RH: 3% ~ 95% - RoHS Compliant, CE and FCC - Key Lifespan: >5 million actuations - MTBF: >20000H - MTTR: <30min - Applications: Industrial, Vehicle, aerospace, naval, nuclear power plant, maritime, Radar, display console, portable rugged laptop, UAV ground station etc.
