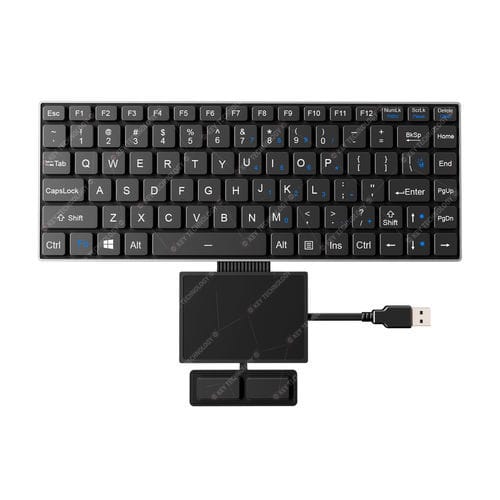

Panel-mount keyboard K-TEK-V285-FN-BL-FC-SC-DWP+TP85-DML+2K-FC
scissor switch86-keywith 2 mouse keys

Panel-mount keyboard - K-TEK-V285-FN-BL-FC-SC-DWP+TP85-DML+2K-FC - Key Technology Rugged System Limited - scissor switch / 86-key / with 2 mouse keys
Panel-mount keyboard - K-TEK-V285-FN-BL-FC-SC-DWP+TP85-DML+2K-FC - Key Technology Rugged System Limited - scissor switch / 86-key / with 2 mouse keys
Panel-mount keyboard - K-TEK-V285-FN-BL-FC-SC-DWP+TP85-DML+2K-FC - Key Technology Rugged System Limited - scissor switch / 86-key / with 2 mouse keys - image - 2
Panel-mount keyboard - K-TEK-V285-FN-BL-FC-SC-DWP+TP85-DML+2K-FC - Key Technology Rugged System Limited - scissor switch / 86-key / with 2 mouse keys - image - 3
Panel-mount keyboard - K-TEK-V285-FN-BL-FC-SC-DWP+TP85-DML+2K-FC - Key Technology Rugged System Limited - scissor switch / 86-key / with 2 mouse keys - image - 4
Add to favorites
Compare this product
Go to the Key Technology Rugged System Limited website for more information

Characteristics

Mounting
panel-mount
Key type
scissor switch
Number of keys
with 2 mouse keys, 86-key
Pointing device
with touchpad
Domain
industrial, outdoor, for public access kiosks and internet terminals, for self-service information kiosk, maritime industry, for aerospace applications, for the transportation industry, for aeronautical applications
Connection type
USB, PS2, Dot matrix
Protection level
rugged, IP67, EMC
Other characteristics
compact, custom, long-travel, backlit, integrated

Description

Key Travel：1.20mm±0.10mm MECHANICAL DATA Key travel 1.20mm±0.10mm Key life span more than 5 million of operations Actuation Force 0.8N±0.2N ELECTRICAL DATA Supply Voltage DC +5V±5% Current Rating ≤30mA when backlight is off, ≤300mA with backlight on EMC Standard EN 55032:2015 EN 55035:2017 Lifespan > 5 years OS All Windows, Linux, Unix, Mac OSX, Vxworks, Android ENVIRONMENTAL ADAPTABILITY Operating temperature -40℃ to + 60℃ Storage temperature - -50℃ to + 70℃ Humidity test 1. Test temperature: 30℃~60℃, 2. Test humidity: 95%RH, 3. Test period: 24h as a cycle, 10 cycles, total 240h Atmospheric pressure 57kPa~106kPa Vibration test 0~5.1Hz, displacement 1mm Shock test 1. Pulse waveform: post-peak sawtooth wave 2. Peak acceleration: 40g 3. Pulse duration: 11ms 4. Test period: X,Y, Z triaxial, 3 times impact to each axial front and back, a total of 18 times Temperature shock test 1. Test temperature: -50℃~70℃ 2. Test period: -50℃ for 2h, 70℃ for 2h, 3 cycles, a total of 12h Fungus test 1. Test temperature: (30±1) ℃ 2. Relative humidity: (95±5) %RH 3. Test strains: Aspergillus flavus, Aspergillus variegatus, Penicillium cordylus, mucocellus globularis, Aspergillus Niger 4. Test period: 28 days (672 hours)
