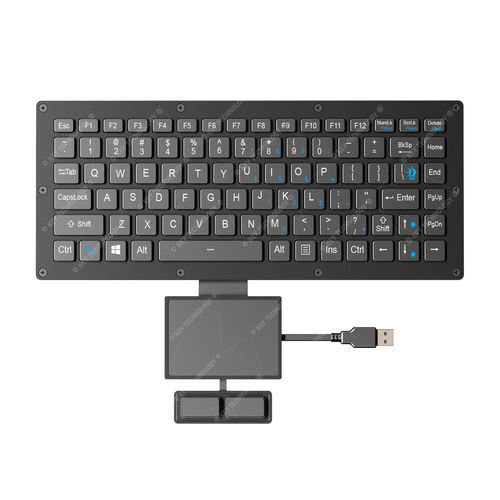

Panel-mount keyboard K-TEK-V296-FN-BL-FC-PR-AL-DWP+TP85-DML+2K-FC

scissor switch86-keywith 2 mouse keys

Category
DWP Scissors Switch Keyboard

General
Key Number: 86 keys + 2 mouse buttons
Key switch: Rugged scissor switch technology
Key travel: 1.20mm ±0.10mm
Key life span: more than 5 million operations
Actuation Force: 0.8N ±0.2N
Interface: USB
Protection Level: IP67 (front panel)

Electrical Data
Supply Voltage: DC +5V ±5%
Current Rating: ≤30mA when backlight is off, ≤300mA with backlight on
EMC Standard: EN 55032:2015, EN 55035:2017
Lifespan: >5 years
Supported OS: All Windows, Linux, Unix, Mac OSX, VxWorks, Android

Environmental Adaptability
Operating temperature: -40°C to +60°C
Storage temperature: -50°C to +70°C
Atmospheric pressure: 57 kPa ~ 106 kPa

Test & Environmental Procedures

• Humidity test: test temperature 30°C~60°C; test humidity 95% RH; test period 24h cycle, 10 cycles (total 240h).
• Vibration test: 0 ~ 5.1 Hz, displacement 1 mm.
• Shock test: pulse waveform post-peak sawtooth; peak acceleration 40 g; pulse duration 11 ms; triaxial test X, Y, Z, 3 impacts each front and back (total 18 impacts).
• Temperature shock test: -50°C ~ 70°C; test period: -50°C for 2h, 70°C for 2h, 3 cycles (total 12 h).
• Fungus test: test temperature (30±1)°C; relative humidity (95±5)% RH; strains include Aspergillus and Penicillium species; test period 28 days (672 hours).
• Salt spray test: NaCl solution 5±1%, pH ~6.6, chamber 35°C; 24h spray + 24h drying as one cycle for 2 cycles (total 96 h); post-test cleaning and inspection.
• Rain test: rainfall and blowing rain directed at keyboard surface; wind velocity ≥18 m/s; duration 3 h.
• Dust test: dust blowing procedure; dust content ~10.6 g/m³ ±7 g/m³; sequence includes 6 h blasting at 23°C, then stabilize at 60°C for 1 h, then 6 h more dust blowing.
• Transport package drop test: sample weight ≤45.4 kg, max size <91.0 cm; drop height 122 cm; drop to each face, edge and corner totaling 26 drops.

Reliability & Certifications
RoHS compliant, CE and FCC certified
MIL-STD-810H covering wide temperature ranges, low pressure, humidity, vibration (including transport packaging vibration and working vibration 5.1 Hz), shock, temperature shock, rain, salt mist, dust, fungus, solar radiation, etc.
Protection Level: IP67 (front panel)
Lifespan: >5 years
MTBF: >20000 H
MTTR: <30 min

Applications
Suitable for vehicle, aerospace, naval and maritime applications, radar and display consoles, portable rugged laptops, UAV ground stations and other rugged / mission-critical environments.

Technical specifications

• Model family / name: K-TEK-V296-FN-BL-FC-PR-AL-DWP+TP85-DML+2K-FC
• Category: DWP Scissors Switch Keyboard
• Keys: 86 keys + 2 mouse buttons
• Key mechanism: Rugged scissor switch
• Key travel: 1.20 mm ±0.10 mm
• Actuation force: 0.8 N ±0.2 N
• Key life: >5 million operations
• Interface: USB
• Supply voltage: DC +5V ±5%
• Current rating: ≤30 mA (backlight off), ≤300 mA (backlight on)
• EMC: EN 55032:2015, EN 55035:2017
• Environmental range: Operating -40°C to +60°C; Storage -50°C to +70°C
• Protection: IP67 (front panel)
• Certifications & standards: RoHS, CE, FCC, MIL-STD-810H
• MTBF: >20000 H; MTTR: <30 min
• Typical applications: vehicle, aerospace, naval, radar consoles, rugged laptops, UAV ground stations
