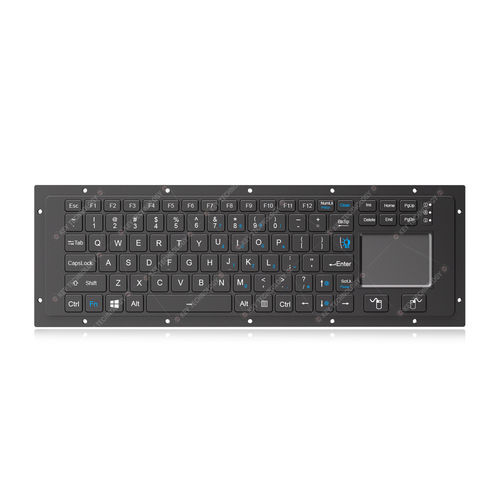

Console keyboard K-TEK-V369TP-FN-BL-FC-SC-ML-AL-DWP

scissor switchwith 2 mouse keys88-key

Category
DWP scissor-switch keyboard (88 keys, including 2 mouse buttons)

Overview
The K-TEK-V369TP-FN-BL-FC-SC-ML-AL-DWP is a rugged 88-key scissor-switch keyboard with USB interface and IP67 front-panel protection. Key travel 1.20mm ±0.10mm, actuation force 0.8N ±0.2N, key lifespan >5 million actuations. Designed for vehicle, aerospace, naval and other harsh-environment applications.

Mechanical Data
Key number: 88 keys (including 2 mouse buttons)
Key switch: Rugged scissor switch technology
Key travel: 1.20mm ±0.10mm
Actuation force: 0.8N ±0.2N
Key life span: >5 million operations

Electrical Data
Supply voltage: DC +5V ±5%
Current rating: ≤30mA (backlight off), ≤300mA (backlight on)
Interface: USB
EMC standard: EN 55032:2015, EN 55035:2017
Supported OS: Windows, Linux, Unix, Mac OSX, VxWorks, Android
Lifespan: >5 years

Environmental Adaptability
Operating temperature: -40℃ to +65℃
Storage temperature: -50℃ to +75℃
Humidity: 95%RH cyclic test as specified (10 cycles, total 240h)
Atmospheric pressure: 57kPa–106kPa
Vibration: tested 0–5.1Hz displacement 1mm
Shock: peak acceleration 40g, pulse 11ms, triaxial impacts (total 18 impacts)
Temperature shock: -50℃/2h and 70℃/2h cycles (3 cycles)
Salt spray, rain, dust and fungus tests performed per specification

Reliability & Certification
RoHS compliant; CE and FCC certified
Tested to MIL-STD-810H (temperature extremes, low pressure, humidity, vibration, shock, rain, salt mist, dust, fungus, solar radiation)
Protection level: IP67 (front panel)
MTBF: >20000 hours; MTTR: <30 minutes

Technical specifications

• Category: DWP Scissors Switch Keyboard
• Key number: 88 keys (including 2 mouse buttons)
• Key travel: 1.20mm ±0.10mm
• Key switch: Rugged scissor switch technology
• Actuation force: 0.8N ±0.2N
• Key life span: more than 5 million operations
• Interface: USB
• Supply voltage: DC +5V ±5%
• Current rating: ≤30mA (backlight off), ≤300mA (backlight on)
• EMC standard: EN 55032:2015, EN 55035:2017
• OS: Windows, Linux, Unix, Mac OSX, VxWorks, Android
• Operating temperature: -40℃ to +65℃
• Storage temperature: -50℃ to +75℃
• Protection level: IP67 (front panel)
• Lifespan: >5 years
• MTBF: >20000H
• MTTR: <30min
• Applications: Vehicle, aerospace, naval, maritime, Radar, console, portable rugged laptop, UAV ground station
