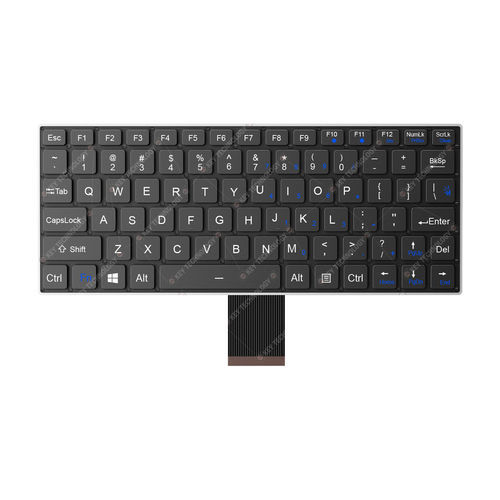

Panel-mount keyboard K-TEK-V268-FN-BL-FC-SC-DM-DWP

scissor switch80-keyfor food applications

1. Product Overview
Compact 80-key ultra-thin embedded rugged keyboard with patented scissor switch structure and IP67 fully sealed waterproof rating. Equipped with top-row F1–F12 function keys and built-in ultra-thin FPC, delivering silent, precise and stable input without key missing or stuck issues. Featured with anti-microbial, chemical-resistant surface and one-key FN+Clean cleaning function for convenient on-site maintenance without PC disconnection. Supports panel mounting and adjustable white backlight.
Fully compliant with MIL-STD-810H military environmental standard and meets 10 core military reliability specifications. MIL-STD-461G EMC/EMI/EMS/ESD is optional. Patented design (Patent: 202422198937.6). Dimension: 268.0mm × 108.0mm.

2. Key Features
80-key compact layout with full F1–F12 function keys. Patented scissor switch with 1.20mm±0.10mm key travel and 0.8N±0.2N actuation force for silent and tactile typing. Supports over 5 million keystroke lifespan.
IP67 front-panel sealing, waterproof, dustproof, anti-microbial and chemical-resistant. FN+Clean non-disassembly cleaning design avoids operational errors. Adjustable white backlight for low-light use. Ultra-thin panel mount structure for easy integration.
MIL-STD-810H certified with optional MIL-STD-461G electromagnetic compatibility. RoHS, CE, FCC compliant with over 5 years long service life.

3. Applications
Suitable for high-reliability and harsh-environment scenarios including vehicle systems, aerospace, naval & maritime equipment, radar devices, display consoles, rugged laptops and UAV ground stations.

4. Mechanical Data
Key layout: 80 keys
Switch type: Patented rugged scissor switch
Key travel: 1.20mm ± 0.10mm
Actuation force: 0.8N ± 0.2N
Mechanical lifespan: ≥5 million operations
Overall dimension: 268.0mm × 108.0mm

5. Electrical & Compliance Data
Power supply: DC 5V ±5%
Current consumption: ≤30mA (backlight off); ≤300mA (backlight on)
Interface: Dot matrix
OS compatibility: Windows, Linux, Unix, Mac OSX, Vxworks, Android
EMC standard: EN 55032:2015, EN 55035:2017
Certifications: RoHS, CE, FCC
Optional military standard: MIL-STD-461G (EMC/EMI/EMS/ESD)

6. Environmental Adaptability & Reliability
Basic Parameters
Protection grade: IP67 (front panel)
Operating temperature: -40℃ ~ +65℃
Storage temperature: -50℃ ~ +70℃
Working air pressure: 57kPa ~ 106kPa
Reliability Indicators
Service life: 5+ years
MTBF: >20000H
MTTR: Military certification: Full MIL-STD-810H environmental compliance
Core MIL-STD-810H Test Conditions
Humidity: 95%RH, 30℃~60℃, 240h total duration
Vibration: 0~5.1Hz, 1mm displacement
Shock: 40g peak acceleration, 11ms pulse, 18 triaxial impacts
Temperature shock: -50℃ / 70℃ alternating test, 3 cycles
Fungus resistance: 28-day multi-strain fungus test
Salt spray: 96h total cyclic salt spray anti-corrosion test
Rain resistance: 3h wind & rain erosion test
Dust resistance: Dual-stage high-intensity dust blowing test
Drop resistance: 122cm height, 26 times multi-angle drop test

7. Technical Specifications
Ultra-thin 80-key embedded panel-mount rugged keyboard with patented scissor switch and IP67 full sealing. Adopts anti-microbial and chemical-proof coating with dustproof, waterproof, shockproof, salt-fog and fungus-resistant performance for harsh environments.
Equipped with adjustable white backlight and exclusive one-key cleaning function for easy maintenance. Supports multi-system compatibility and stable long-term operation. Compliant with full MIL-STD-810H military environmental standards, with optional MIL-STD-461G electromagnetic protection, fully meeting military and industrial high-reliability application requirements.
