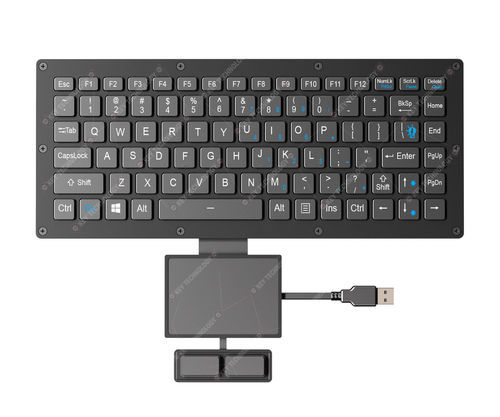

Panel-mount keyboard K-TEK-V296-FN-BL-FC-PR-AL-DWP+TP85-DML+2K-FC

scissor switch86-keywith 2 mouse keys

Product overview
Rugged DWP scissor-switch keyboard with 86 keys plus two integrated mouse buttons. Front panel rated IP67 for dust and water protection. USB interface and broad OS compatibility make it suitable for industrial, vehicular and aerospace control stations.

MECHANICAL DATA
86 keys + 2 mouse buttons. Rugged scissor-switch mechanism with 1.20 mm ±0.10 mm key travel. Actuation force 0.8 N ±0.2 N. Key life span > 5 million operations.

ELECTRICAL DATA
Supply voltage DC +5V ±5%. Current ≤30 mA (backlight off), ≤300 mA (backlight on). EMC: EN 55032:2015; EN 55035:2017. Interface: USB. Compatible OS: Windows, Linux, Unix, macOS, VxWorks, Android. Designed lifespan > 5 years.

ENVIRONMENTAL ADAPTABILITY
Operating temperature: -40℃ to +60℃. Storage temperature: -50℃ to +70℃. Humidity, vibration and shock tested: humidity cycles (95% RH), vibration 0–5.1 Hz, shock up to 40g (11 ms pulses, multi-axial). Temperature shock cycles: -50℃ / +70℃. Salt spray, rain (blowing rain ≥18 m/s), dust and fungus resistance tested. Transport drop test: up to 122 cm on each face, edge and corner (26 drops) for samples ≤45.4 kg.

RELIABILITY
RoHS compliant; CE and FCC certified. Meets MIL-STD-810H environmental test profiles (temperature extremes, low pressure, humidity, vibration, shock, salt fog, dust, fungus, solar radiation). Front-panel protection level: IP67. MTBF > 20,000 h; MTTR < 30 min.

APPLICATION
Designed for integration in vehicles, aerospace and naval systems, radar and display consoles, rugged laptops, UAV ground stations and other harsh-environment control equipment.

Technical specifications

• Category: DWP Scissors Switch Keyboard
• Keying: 86 keys + 2 mouse buttons
• Key switch: Rugged scissor switch technology
• Key travel: 1.20 mm ±0.10 mm
• Actuation force: 0.8 N ±0.2 N
• Key life span: > 5 million operations
• Interface: USB
• Supply voltage: DC +5V ±5%
• Current rating: ≤30 mA (backlight off), ≤300 mA (backlight on)
• EMC: EN 55032:2015; EN 55035:2017
• OS compatibility: Windows, Linux, Unix, macOS, VxWorks, Android
• Protection level: IP67 (front panel)
• Operating temperature: -40℃ to +60℃
• Storage temperature: -50℃ to +70℃
• Environmental tests: humidity, atmospheric pressure, vibration, shock, temperature shock, fungus, salt spray, rain, dust, transport drop (detailed procedures)
• Certifications: RoHS, CE, FCC; meets MIL-STD-810H tests
• Lifespan: > 5 years; MTBF: > 20,000 h; MTTR: < 30 min
• Typical applications: vehicle, aerospace, naval, maritime, radar, display consoles, rugged laptops, UAV ground stations
