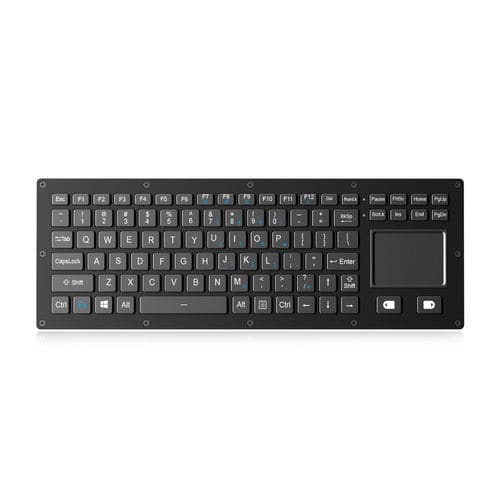

Panel-mount keyboard K-TEK-V356TP-FN-BL-FC-PR-ML-AL-DWP

scissor switch88-keywith 2 mouse keys

Product Overview

• Category: DWP scissor switch keyboard
• Key Number: 88 keys + 2 mouse buttons
• Key Travel: 1.20mm ±0.10mm
• Interface: USB
• Key Switch: Rugged scissor switch technology
• Protection Level: IP67 (front panel)

MECHANICAL DATA
Key: 88 keys + 2 mouse buttons
Key switch: Rugged scissor switch technology
Key travel: 1.20mm ±0.10mm
Key life span: more than 5 million operations
Actuation Force: 0.8N ±0.2N

ELECTRICAL DATA
Supply Voltage: DC +5V ±5%
Current Rating: ≤30mA (backlight off), ≤300mA (backlight on)
EMC Standard: EN 55032:2015; EN 55035:2017
Lifespan: >5 years
Interface: USB
Supported OS: Windows, Linux, Unix, macOS, VxWorks, Android

ENVIRONMENTAL ADAPTABILITY
Operating temperature: -40°C to +60°C
Storage temperature: -50°C to +70°C
Humidity test: cycles at 30–60°C, 95% RH, 24h per cycle, 10 cycles (240h total)
Atmospheric pressure: 57 kPa to 106 kPa
Vibration test: 0–5.1 Hz, displacement 1 mm
Shock test: peak acceleration 40g, pulse 11 ms, triaxial impacts as specified (18 impacts)
Temperature shock: cycles between -50°C and +70°C, 3 cycles (12 h total)
Fungus test: 28 days at 30±1°C, 95±5% RH with common fungal strains
Salt spray: NaCl 5±1% at 35°C, cycles totaling 96 h
Rain test: rainfall and blowing rain at wind ≥18 m/s for 3 h
Dust test: dust blowing cycles and thermal stabilization as specified
Transport drop test: sample ≤45.4 kg, drop height 122 cm, 26 drops covering surfaces, edges and corners

RELIABILITY
RoHS compliant; CE and FCC certified
Conforms to MIL-STD-810H for temperature, pressure, humidity, vibration, shock, rain, salt mist, dust, fungus and solar radiation
Protection Level: IP67 (front panel)
Lifespan: >5 years
MTBF: >20000 h
MTTR: less than 30 min

APPLICATION
Suitable for vehicle, aerospace, naval/maritime, radar and display consoles, portable rugged laptops, UAV ground stations and similar rugged environments

Technical specifications

• Product Code / Title: K-TEK-V356TP-FN-BL-FC-PR-ML-AL-DWP
• Category: DWP scissor switch keyboard
• Keys: 88 keys + 2 mouse buttons
• Key technology: Rugged scissor switch
• Key travel: 1.20mm ±0.10mm
• Actuation force: 0.8N ±0.2N
• Key life span: >5 million operations
• Interface: USB
• Supply voltage: DC +5V ±5%
• Current rating: ≤30mA (backlight off), ≤300mA (backlight on)
• EMC: EN 55032:2015; EN 55035:2017
• Protection: IP67 (front panel)
• Operating temperature: -40°C to +60°C
• Storage temperature: -50°C to +70°C
• Environmental tests: humidity, fungus, salt spray, rain, dust
• Shock/vibration: vibration 0–5.1 Hz 1 mm; shock peak 40g, 11 ms pulses
• Certifications: RoHS, CE, FCC; conforms to MIL-STD-810H
• Lifespan: >5 years; MTBF >20000 h; MTTR less than 30 min
• Typical applications: vehicle, aerospace, naval/maritime, radar, display consoles, rugged laptops, UAV ground stations
