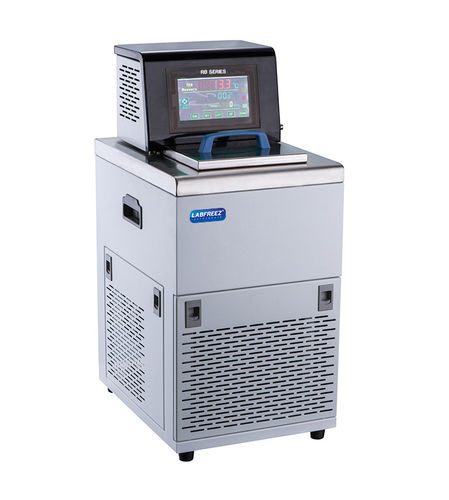

Circulating water bath RB series

for the food industrylaboratoryheating

Product overview
The RB Series is a refrigerating and heating circulating water bath equipped with an external circulation pump and a stainless-steel tank. It uses a CFC-free refrigeration system with a fully enclosed air-cooled compressor and provides precise temperature control via large-screen LCD, touch softkeys, fuzzy control and self-tuning PID. Designed for laboratory and production use as a stable reaction bath or as a heating/refrigerating water source for circulation.

Applications

• Petroleum, chemical and electronic industries.
• Physical and chemical research, biological engineering and life sciences.
• Medical laboratories, food testing, universities and R&D centers.
• Quality control and production departments requiring temperature-controlled circulation.

Key features

• Environmentally friendly CFC-free refrigeration system.
• Fully enclosed air-cooled compressor with low noise and automatic overload/overheat protection.
• Power protection with automatic 3-minute delay on restart.
• Large-screen LCD and touch softkeys for intuitive operation.
• Fuzzy control and self-tuning PID for accurate temperature regulation.
• Selectable single heating, single cooling or simultaneous heating modes.
• Upper/lower temperature alarm and over-temperature protection.
• High-quality stainless-steel tank with drain port.
• Includes external circulation pump; compatible with external circulation loops; external cooling liquid tank circulation supported.

Models and main data

• RB6 — -5~100°C — ±0.05°C — 0.1°C — 260×200×140 mm — 7.3 L — 6 L/min — 180×140 mm.
• RB1006 — -10~100°C — ±0.05°C — 0.1°C — 260×200×140 mm — 7.3 L — 6 L/min — 180×140 mm.
• RB2006 — -20~100°C — ±0.05°C — 0.1°C — 260×200×140 mm — 7.3 L — 6 L/min — 180×140 mm.
• RB3006 — -30~100°C — ±0.1°C — 0.1°C — 260×200×140 mm — 7.3 L — 6 L/min — 180×140 mm.
• RB4006 — -40~100°C — ±0.1°C — 0.1°C — 260×200×140 mm — 7.3 L — 6 L/min — 180×140 mm.
• RB0510 — -5~100°C — ±0.05°C — 0.1°C — 260×200×200 mm — 10 L — 6 L/min — 180×140 mm.
• RB1010 — -10~100°C — ±0.05°C — 0.1°C — 260×200×200 mm — 10 L — 6 L/min — 180×140 mm.
• RB2010 — -20~100°C — ±0.05°C — 0.1°C — 260×200×200 mm — 10 L — 6 L/min — 180×140 mm.
• RB3010 — -30~100°C — ±0.1°C — 0.1°C — 260×200×200 mm — 10 L — 6 L/min — 180×140 mm.
• RB4010 — -40~100°C — ±0.1°C — 0.1°C — 260×200×200 mm — 10 L — 6 L/min — 180×140 mm.
• RB0515 — -5~100°C — ±0.05°C — 0.1°C — 300×250×200 mm — 15 L — 6 L/min — 235×160 mm.
• RB1015 — -10~100°C — ±0.05°C — 0.1°C — 300×250×200 mm — 15 L — 6 L/min — 235×160 mm.
• RB2015 — -20~100°C — ±0.05°C — 0.1°C — 300×250×200 mm — 15 L — 6 L/min — 235×160 mm.
• RB3015 — -30~100°C — ±0.1°C — 0.1°C — 300×250×200 mm — 15 L — 6 L/min — 235×160 mm.
• RB4015 — -40~100°C — ±0.1°C — 0.1°C — 300×250×200 mm — 15 L — 6 L/min — 235×160 mm.
• RB0520 — -5~100°C — ±0.05°C — 0.1°C — 280×250×280 mm — 19.6 L — 6 L/min — 235×160 mm.
• RB1020 — -10~100°C — ±0.05°C — 0.1°C — 280×250×280 mm — 19.6 L — 6 L/min — 235×160 mm.
• RB2020 — -20~100°C — ±0.05°C — 0.1°C — 280×250×280 mm — 19.6 L — 6 L/min — 235×160 mm.
• RB3020 — -30~100°C — ±0.1°C — 0.1°C — 280×250×280 mm — 19.6 L — 6 L/min — 235×160 mm.
• RB0530 — -5~100°C — ±0.05°C — 0.1°C — 440×325×200 mm — 29 L — 13 L/min — 310×280 mm.
• RB1030 — -10~100°C — ±0.05°C — 0.1°C — 440×325×200 mm — 29 L — 13 L/min — 310×280 mm.
• RB2030 — -20~100°C — ±0.05°C — 0.1°C — 440×325×200 mm — 29 L — 13 L/min — 310×280 mm.
• RB3030 — -30~100°C — ±0.1°C — 0.1°C — 440×325×200 mm — 29 L — 13 L/min — 310×280 mm.
• RBW1015 — -10~100°C — ±0.05°C — 0.1°C — 280×250×220 mm — 15 L — 6 L/min — 235×160 mm.
• RBW2008 — -20~100°C — ±0.05°C — 0.1°C — 280×250×140 mm — 10 L — 6 L/min — 235×160 mm.
• RBW3506 — -35~100°C — ±0.1°C — 0.1°C — 260×200×140 mm — 7.3 L — 6 L/min — 180×140 mm.
• RBW3510 — -35~100°C — ±0.1°C — 0.1°C — 260×200×200 mm — 10 L — 6 L/min — 180×140 mm.
• RBW0506 — -6~100°C — ±0.05°C — 0.1°C — 260×200×140 mm — 7.3 L — 6 L/min — 180×140 mm.
• RBW4006 — -40~100°C — ±0.1°C — 0.1°C — 260×200×140 mm — 7.3 L — 6 L/min — 180×140 mm.

Technical specifications

• Series name: RB Series.
• Refrigeration: Fully enclosed air-cooled compressor; CFC-free refrigeration system.
• Control: Large-screen LCD; touch softkeys; fuzzy control and self-tuning PID.
• Protection: Overheating protection; automatic overload protection; power protection with 3-minute delay; over-temperature alarm and upper/lower alarm settings.
• Construction: Stainless-steel tank; drain port; external circulation pump provided; compatible with external circulation loops and external cooling liquid tank circulation.
