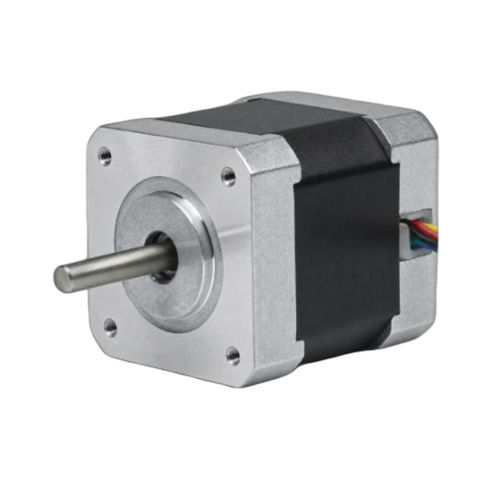

Two-phase stepper motor 42BHH48-08A-24

hybrid stepperNEMA 17for robotics

Product overview
The 42BHH48-08A-24 is a 42 mm (NEMA 17) 2‑phase hybrid stepper motor with a 48 mm body length, providing 0.314 N·m (3.2 kg·cm) holding torque. Rated at 0.8 A/phase and configured with 6 leads, it is designed for precision positioning in automation, CNC, robotics and laboratory equipment. Recommended driver: CW215.

Key features

• Step angle: 1.8° ± 5% — compatible with microstepping
• Holding torque: 0.314 N·m (3.2 kg·cm)
• Rated current: 0.8 A/Phase — 6‑lead wiring for series/parallel options
• Compact: 42 mm frame (NEMA 17), 48 mm body length, 5 mm shaft
• Weight: 0.6 kg — suitable for compact assemblies

Electrical specifications
Step angle: 1.8° ± 5%
Holding torque: 0.314 N·m (3.2 kg·cm)
Rated current: 0.8 A/Phase
Number of phases: 2
Number of leads: 6
Shaft diameter: 5 mm
Frame size: 42 mm (NEMA 17)
Body length: 48 mm
Weight: 0.6 kg
Recommended driver: CW215

Mechanical and documentation
Mechanical drawing and torque‑speed curve are available on the product page to assist with mounting, coupling selection and performance verification.

Ordering information

• Model family: 42BHH Series — example: 42BHH48-08A-24
• Standard shaft: 5 mm — alternative shaft options available on request
• Connector: 6‑lead wiring — custom wiring or pre-assembled cables available
