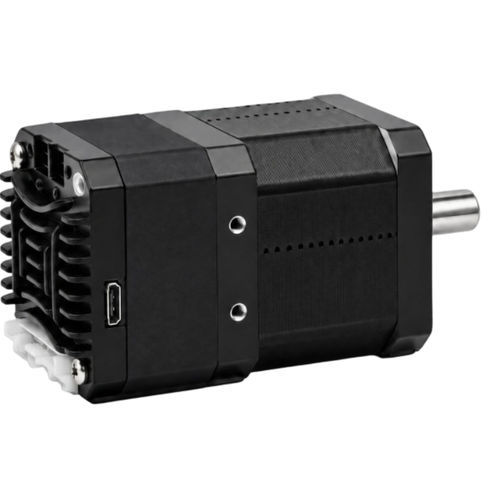

Stepper motor 42BH88EC06IE

48 Vwith integrated driver and codercompact

Product overview
The 42BH88EC06IE is the 0.72 N·m maximum-output-torque option in the 42 mm EtherCAT group. Its integrated motor, drive and encoder arrangement supports cleaner wiring and closed-loop motion feedback in compact, demanding axes.

Key Highlights

• 0.72 N·m maximum output torque
• 9–48 VDC input
• EtherCAT and TTL communication
• 4096-line / 16,384-count encoder feedback
• Internal FLASH configuration storage

Integrated Servo Overview (table)
Parameter — Value
Model No.: 42BH88EC06IE
Frame Size: 42 mm (NEMA 17)
Integrated Body Length: 88.4 mm
L Size: 60 mm
Shaft Diameter: 8 mm
Input Voltage Range: 9–48 VDC
Maximum Output Torque: 0.72 N·m
Communication: EtherCAT, TTL

Electrical, Feedback & Configuration (table)
Parameter — Value
Current Setting: 0.2–3.2 A software adjustable; factory-matched motor: 2.0 A
Encoder Feedback: 4096 lines (16,384 counts) encoder feedback
Phase Resistance: 1.75 Ω ±20%
Phase Inductance: 3.7 mH ±20%
Rotor Inertia: Approx. 110 g·cm²
Weight: Approx. 0.5 kg
Microstep Setting: Factory default 10,000; object index 0x2001
Address Setting: Start address from source; automatically allocated by master
Protection: Over-voltage, under-voltage, over-current, winding open circuit and position deviation
Non-volatile Storage: Configuration parameters stored in internal MCU FLASH
Operating Temperature: 0°C to +40°C
Operating Humidity: 20% RH to 90% RH
TTL Serial Settings: 115200 bps; 8 data bits; 1 stop bit; no parity

Mechanical drawing
Mechanical drawing image available for dimensional reference (mechanical diagram for the 42 mm EtherCAT integrated stepper servo).

Technical specifications

• Model No.: 42BH88EC06IE
• Frame Size: 42 mm (NEMA 17)
• Body / Integrated Length: 88.4 mm
• Maximum Output Torque: 0.72 N·m
• Input Voltage Range: 9–48 VDC
• Communication Interfaces: EtherCAT, TTL serial
• Encoder: 4096 lines (16,384 counts) feedback
• Current Setting Range: 0.2–3.2 A (software adjustable); factory default 2.0 A
• Phase Resistance: 1.75 Ω ±20%
• Phase Inductance: 3.7 mH ±20%
• Rotor Inertia: ~110 g·cm²
• Weight: ~0.5 kg
• Shaft Diameter: 8 mm
• L size: 60 mm
• Microstep Setting: Factory default 10,000 (object index 0x2001)
• Addressing: Start address from source; auto-allocated by EtherCAT master
• Protections: Over-voltage, under-voltage, over-current, winding open circuit, position deviation
• Non-volatile Storage: Internal MCU FLASH for configuration
• Operating Temperature: 0°C to +40°C
• Operating Humidity: 20% to 90% RH
• TTL Serial Settings: 115200 bps; 8N1 (8 data bits, no parity, 1 stop bit)
