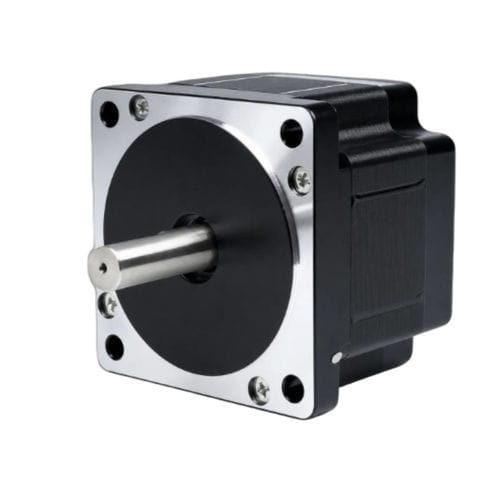

Two-phase stepper motor 86BHH60-300A-37Dhybrid stepperNEMA 34
Add to favorites
Compare this product
Characteristics
- Type
- hybrid stepper, two-phase stepper
- Configuration
- NEMA 34
- Intensity
3 A
- Torque
2.94 Nm
(2.168433 ft.lb)- Diameter
14 mm
(0.55 in)
Description
Product overview
The 86BHH60 is a compact NEMA 34 hybrid stepper motor with a 60mm body, providing 2.94 N·m (30 kg·cm) holding torque at 3.0 A. Its short housing and 14mm shaft suit space-constrained CNC machines, laser systems and pick-and-place equipment.
Key highlights
Electrical specifications (table)
Step angle: 1.8° ±5%
Holding torque: 2.94 N·m (30 kg·cm)
Rated current: 3.0 A/phase
Number of phases: 2
Number of leads: 4
Shaft diameter: 14mm
Frame size: 86mm (NEMA 34)
Body length: 60mm
Weight: 1.7 kg
Recommended driver: CWD860H
Mechanical drawing
Mechanical drawing — 86BH Series (86mm (NEMA 34)) (illustration available on product page)
Torque-speed curve
Torque-speed curve (reference chart for series; see product specifications and charts for operating points)
Product datasheet
Datasheet reference: 86BHH60-300A-37D
Technical characteristics / specifications
The 86BHH60 is a compact NEMA 34 hybrid stepper motor with a 60mm body, providing 2.94 N·m (30 kg·cm) holding torque at 3.0 A. Its short housing and 14mm shaft suit space-constrained CNC machines, laser systems and pick-and-place equipment.
Key highlights
- 2.94 N·m (30 kg·cm) holding torque
- Compact 60mm body length
- 86mm (NEMA 34) frame
- 14mm shaft diameter
- Recommended driver: CWD860H
Electrical specifications (table)
Step angle: 1.8° ±5%
Holding torque: 2.94 N·m (30 kg·cm)
Rated current: 3.0 A/phase
Number of phases: 2
Number of leads: 4
Shaft diameter: 14mm
Frame size: 86mm (NEMA 34)
Body length: 60mm
Weight: 1.7 kg
Recommended driver: CWD860H
Mechanical drawing
Mechanical drawing — 86BH Series (86mm (NEMA 34)) (illustration available on product page)
Torque-speed curve
Torque-speed curve (reference chart for series; see product specifications and charts for operating points)
Product datasheet
Datasheet reference: 86BHH60-300A-37D
Technical characteristics / specifications
- Model: 86BHH60
- Frame size: 86mm (NEMA 34)
- Body length: 60mm
- Step angle: 1.8° (±5%)
- Holding torque: 2.94 N·m (30 kg·cm)
- Rated current: 3.0 A/phase
- Number of phases: 2
- Number of leads: 4
- Shaft diameter: 14mm
- Weight: 1.7 kg
- Recommended driver: CWD860H
Other NEOTON MOTOR products
stepper-motors
