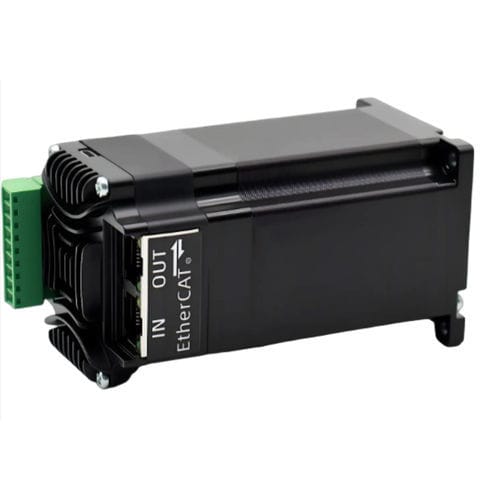

Stepper motor 57BH83EC12IE

60 V24 Vwith integrated driver and coder

Overview
The 57BH83EC12IE is a 57 mm (NEMA 23) EtherCAT integrated stepper servo delivering up to 1.2 N·m of output torque. It integrates motor, drive electronics and encoder feedback in a compact body to simplify wiring and reduce external drive hardware in transfer, packaging and multi‑axis automation systems.

KEY HIGHLIGHTS

• 57 mm (NEMA 23) EtherCAT integrated stepper servo
• Input voltage: 24–60 VDC; maximum output torque: 1.2 N·m
• 4096-line (16,384-count) encoder feedback
• Factory-matched motor current: 4.0 A; software-adjustable current setting (0.2–3.2 A)
• Integrated architecture reduces cabinet space and external drives

Integrated Servo Overview

• Model No.: 57BH83EC12IE
• Frame size: 57 mm (NEMA 23)
• Integrated body length: 82.9 mm
• L size: 55.4 mm
• Shaft diameter: 8 mm
• Input voltage range: 24–60 VDC
• Maximum output torque: 1.2 N·m
• Communications: EtherCAT; TTL serial

Electrical, Feedback & Configuration

• Current setting: 0.2–3.2 A software adjustable; factory-matched motor current: 4.0 A
• Encoder feedback: 4096 lines (16,384 counts)
• Phase resistance: 0.44 Ω ±20%
• Phase inductance: 1.4 mH ±20%
• Rotor inertia: approx. 280 g·cm²
• Weight: approx. 0.72 kg
• Microstep setting: factory default 10,000 (object index 0x2001)
• Address setting: start address from source; automatically allocated by master
• TTL serial: 115200 bps; 8 data bits; 1 stop bit; no parity

Protection & Storage

• Protection features: over-voltage, under-voltage, over-current, winding open circuit, position deviation
• Non-volatile storage: configuration parameters stored in internal MCU FLASH

Mechanical drawing
Detailed mechanical drawing and dimensional diagram are provided as product images and downloadable files on the product page.

Applications

• High-speed transfer and packaging machines
• Multi-axis pick-and-place and gantry systems
• Compact robotics and motion-controlled tooling

Operating environment

• Operating temperature: 0°C to +40°C
• Operating humidity: 20% RH to 90% RH
