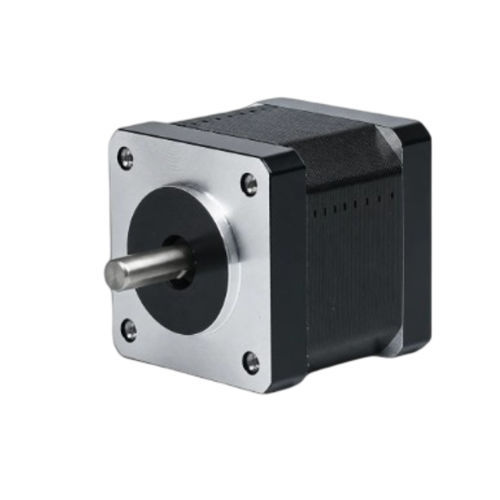

Hybrid stepper motor 35BHH37W-099A-21

two-phasecompactNEMA 14

Overview
The 35BHH37W-099A-21 is a 35mm (NEMA 14) 2-phase hybrid stepper motor delivering 0.196 N·m (2 kg·cm) of holding torque in a 37mm body. Rated at 1 A/phase with 4-lead wiring and a 5 mm shaft, it is designed for compact precision motion-control applications. Recommended driver: CW215.

Key Highlights

• 2-Phase, 1.8° step angle — holding torque 0.196 N·m (2 kg·cm)
• Rated current 1 A/phase — 35 mm (NEMA 14) frame
• Compact: 37 mm body length, 5 mm shaft diameter

Electrical Specifications

• Step angle — 1.8° ± 5%
• Holding torque — 0.196 N·m (2 kg·cm)
• Rated current — 1 A/Phase (alternative listed 3 A)
• Number of phases — 2
• Number of leads — 4
• Shaft diameter — 5 mm
• Frame size — 35 mm (NEMA 14)
• Body length — 37 mm
• Weight — 0.3 kg
• Recommended driver — CW215

Product Datasheet
35BHH37W-099A-21

Available Drawings/Curves

• Mechanical drawing — 35BH Series (35 mm (NEMA 14))
• Torque-speed curve — 35BH Series

Technical specifications

• Phase: 2
• Step angle: 1.8° ± 5%
• Holding torque: 0.196 N·m (2 kg·cm)
• Rated current: 1 A/Phase (alternative listed: 3 A)
• Number of leads: 4
• Shaft diameter: 5 mm
• Frame size: 35 mm (NEMA 14)
• Body length: 37 mm
• Weight: 0.3 kg
• Recommended driver: CW215
• Model reference: 35BHH37W-099A-21
